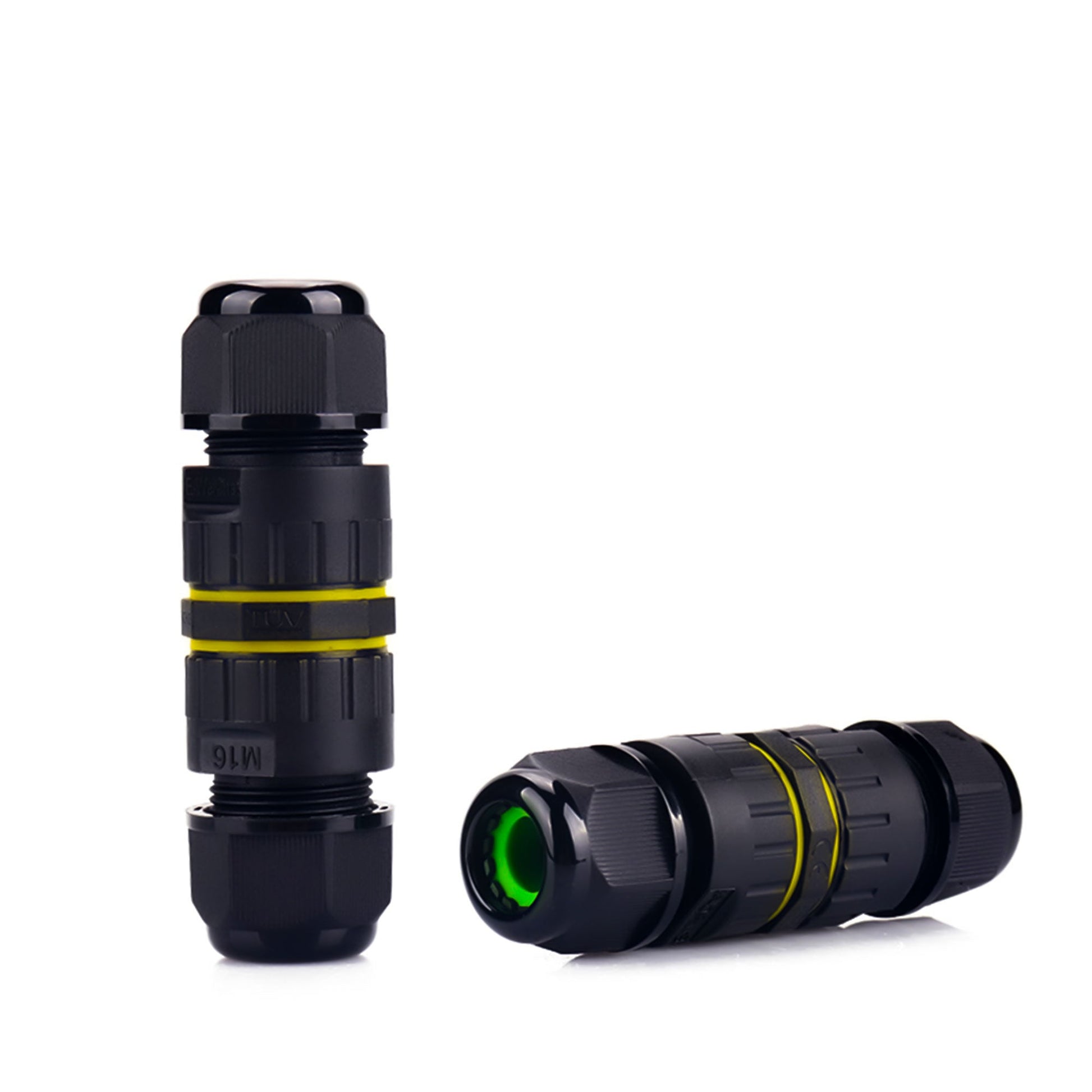

IP68 Waterproof Inline LED Connector - Heavy-Duty Outdoor Cable Joiner 2-Pin to 6-Pin

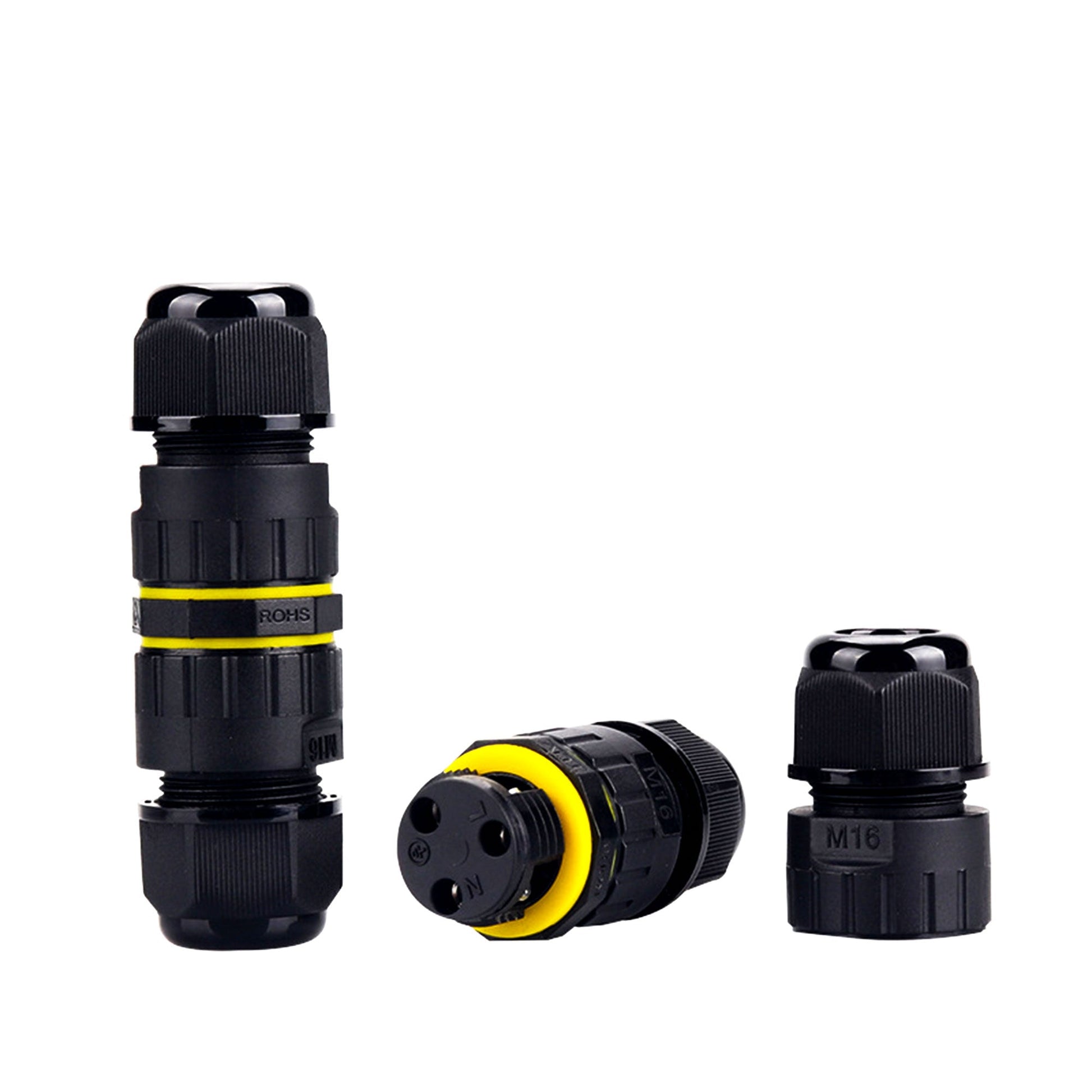

The MXNOVA IP68 Waterproof Inline LED Connector provides a submersible-grade, heavy-duty connection solution for outdoor and wet-environment LED installations. Available in 2-pin, 3-pin, and 4-pin configurations with two cable diameter ranges (5-9mm and 9-12mm), these inline joiners create a permanent watertight seal for landscape lighting, pond fixtures, marine applications, and any installation exposed to moisture.
Key Features

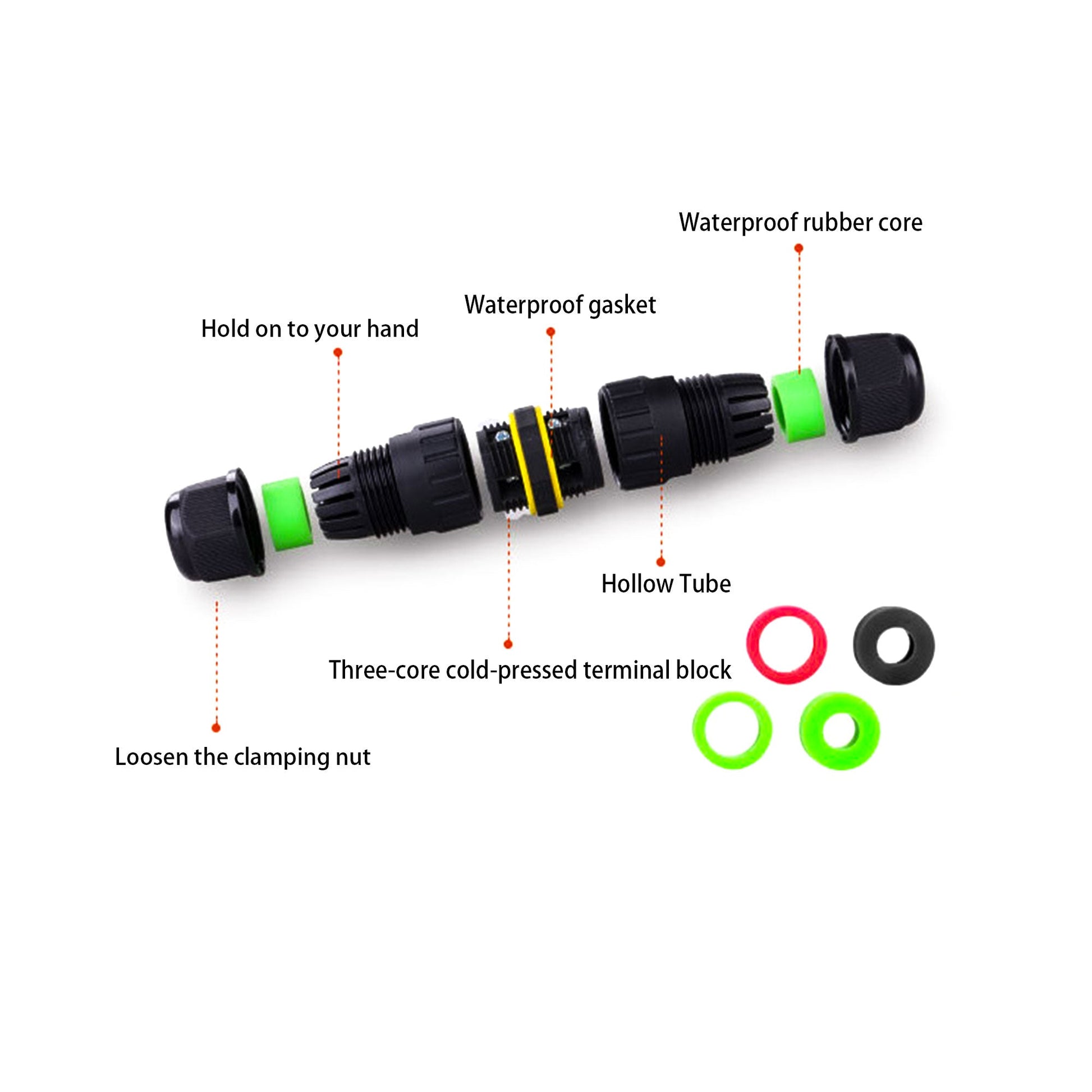

True IP68 Submersible Rating: Precision-molded sealing mechanism and internal gel-filled chambers create a completely watertight connection suitable for permanent submersion and harsh outdoor conditions.

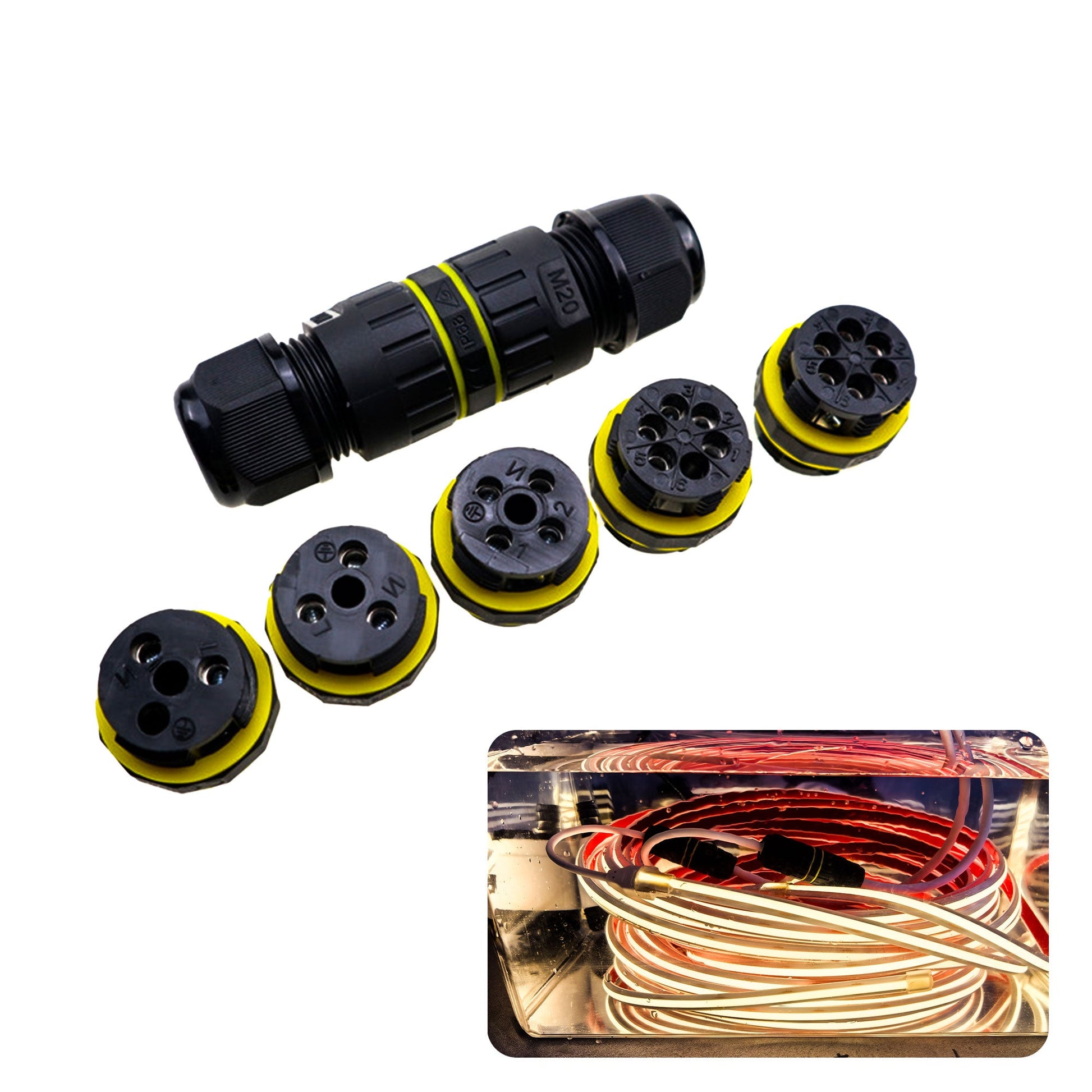

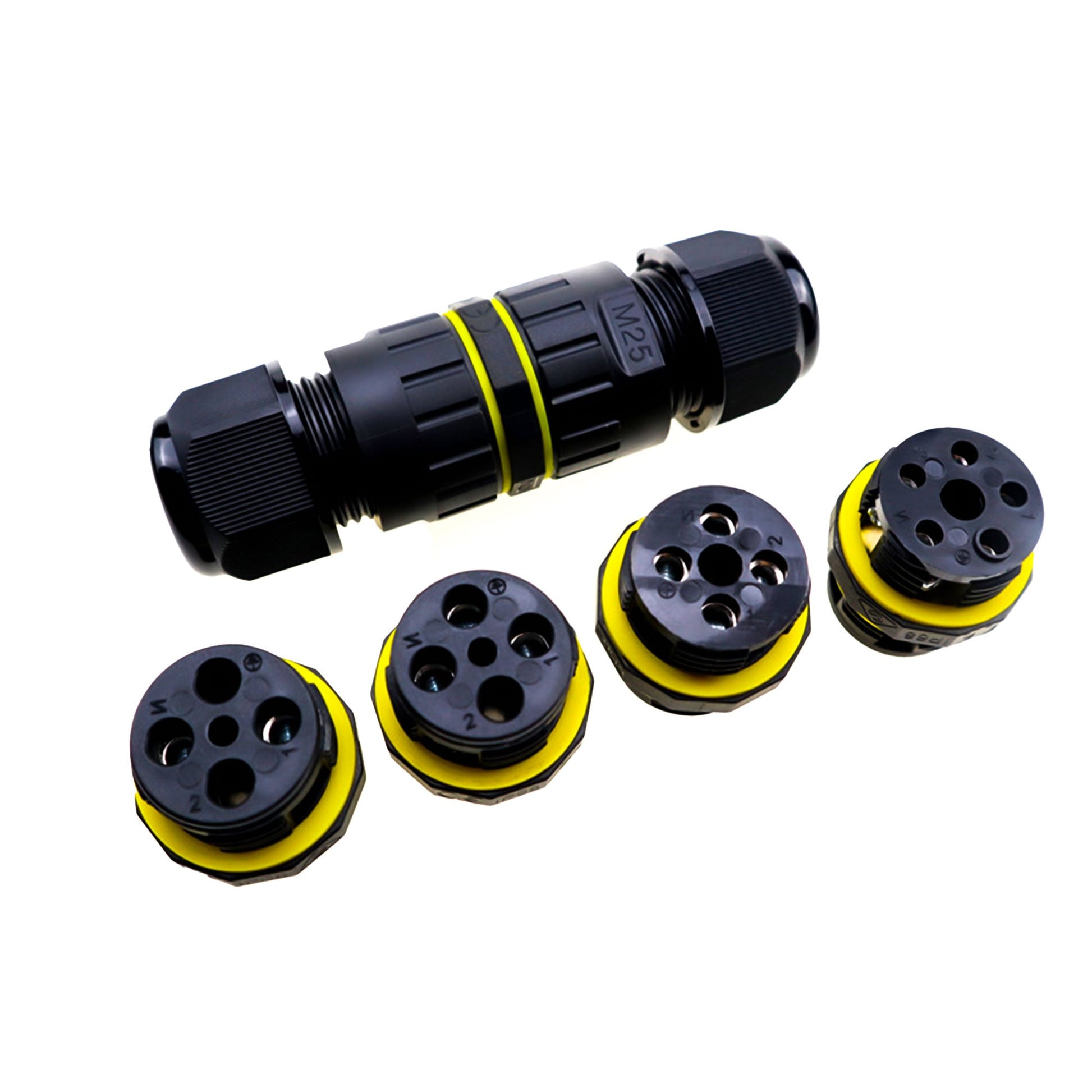

Multiple Pin Configurations: 2-pin for single-color LED strips and basic power, 3-pin for addressable/tunable strips, 4-pin for RGB strips — select the exact pin count to match your cable.
Two Cable Diameter Ranges: 5-9mm range for standard LED strip cables and 9-12mm range for heavier-gauge outdoor extension cables and power leads.
Heavy-Duty Construction: Thick-walled UV-resistant PVC housing withstands extreme temperatures, direct sunlight, and physical impact without cracking or degrading.

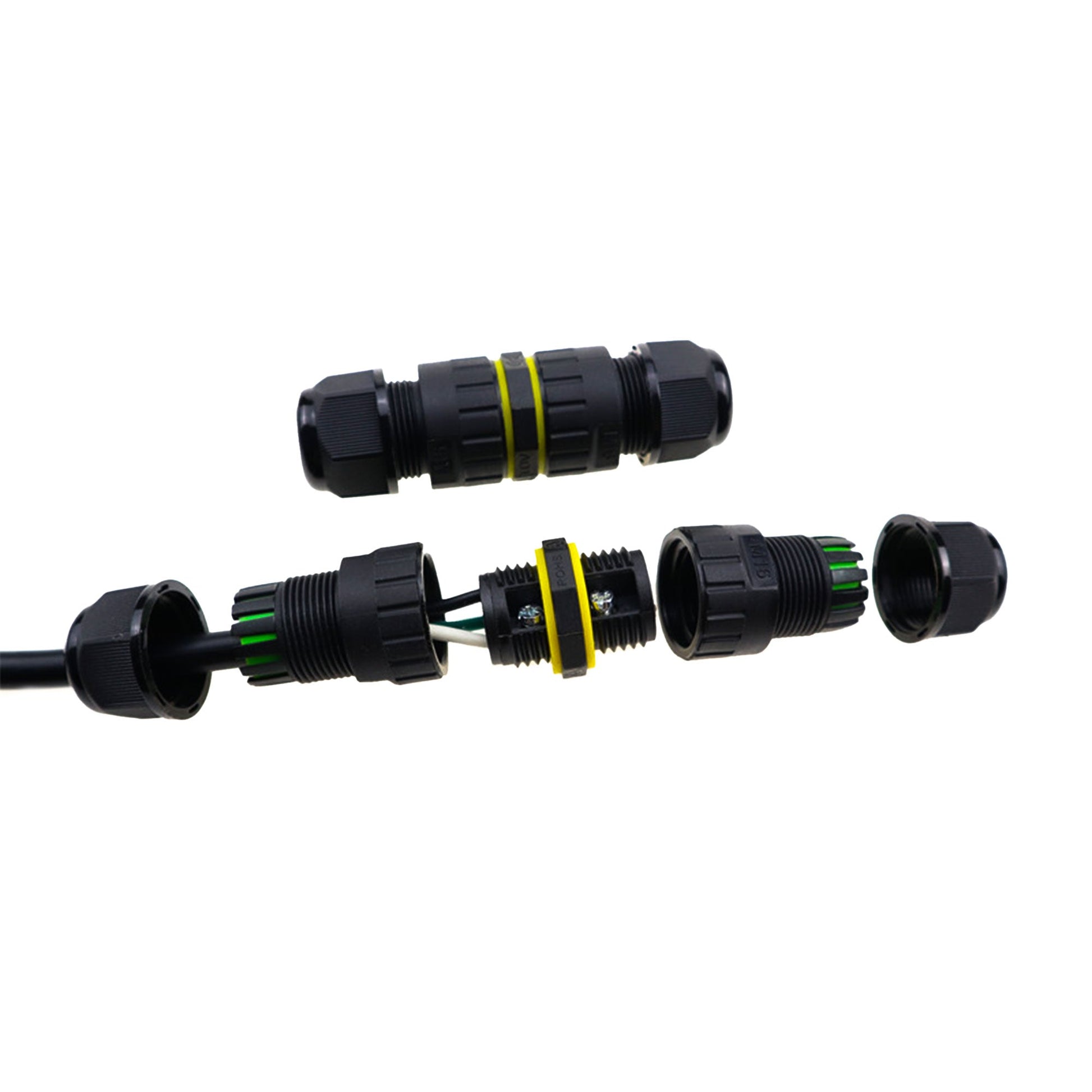

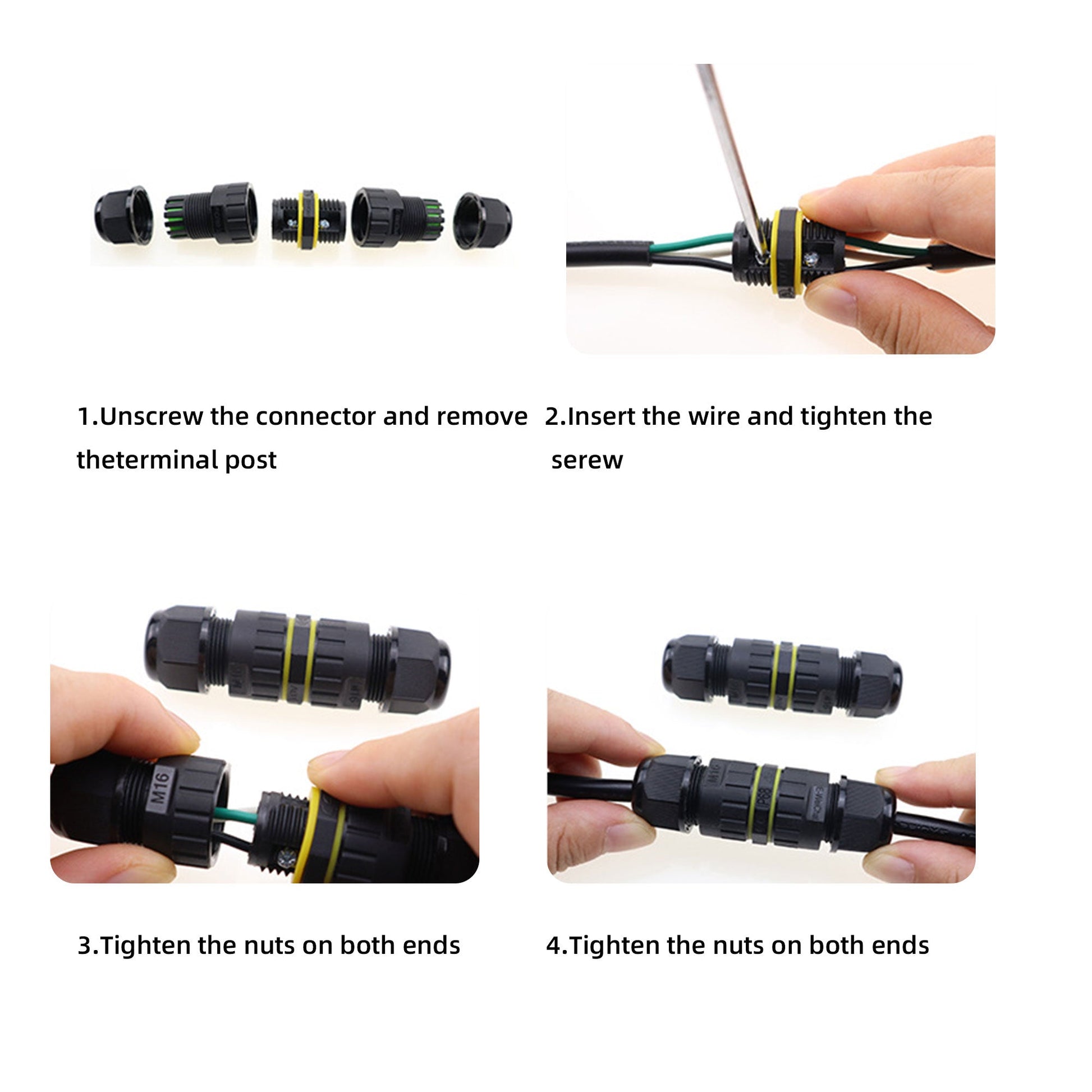

Tool-Free Installation: Screw-on compression design requires no special tools — simply insert the stripped cable ends, tighten the cap, and the gel seal creates an instant watertight bond.

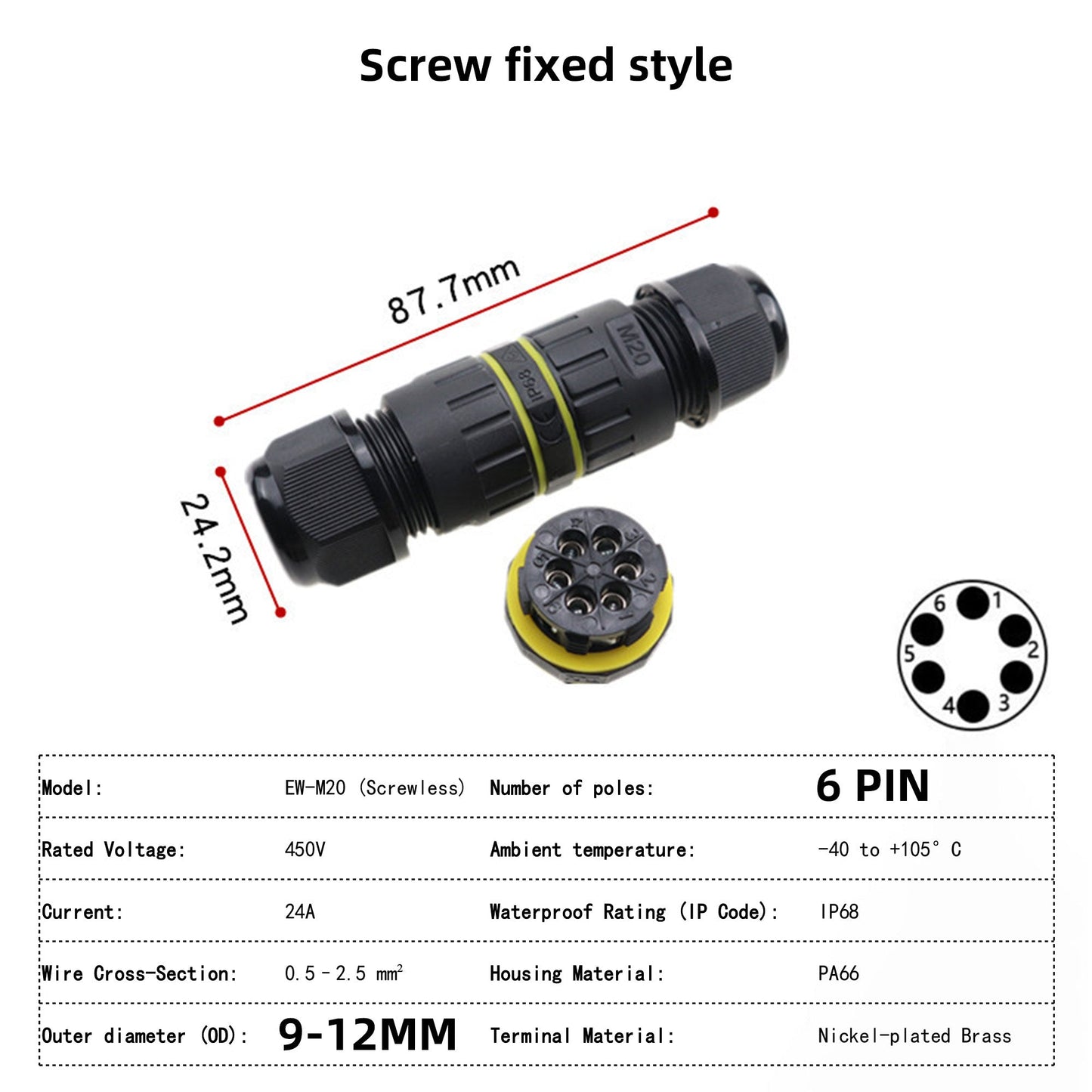

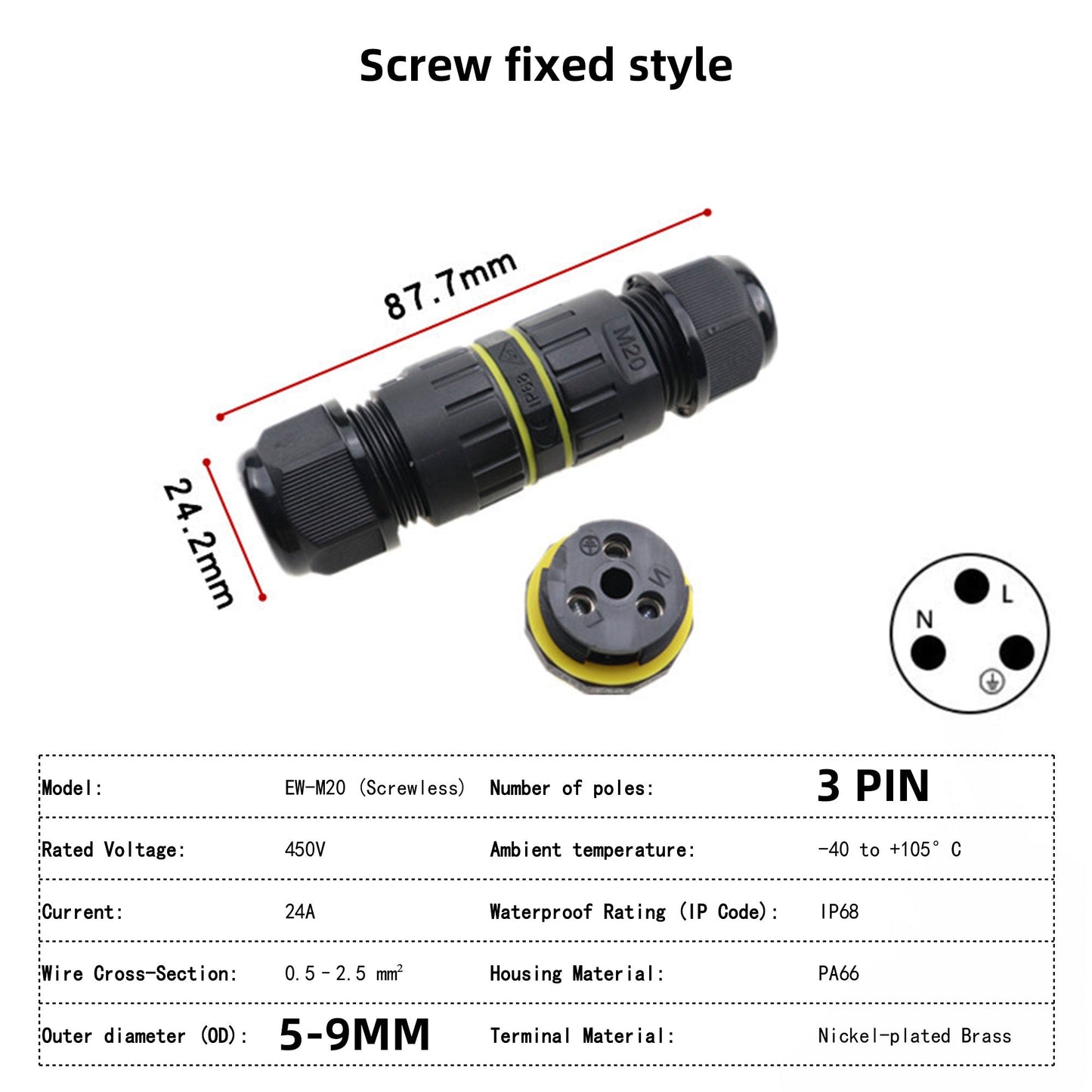

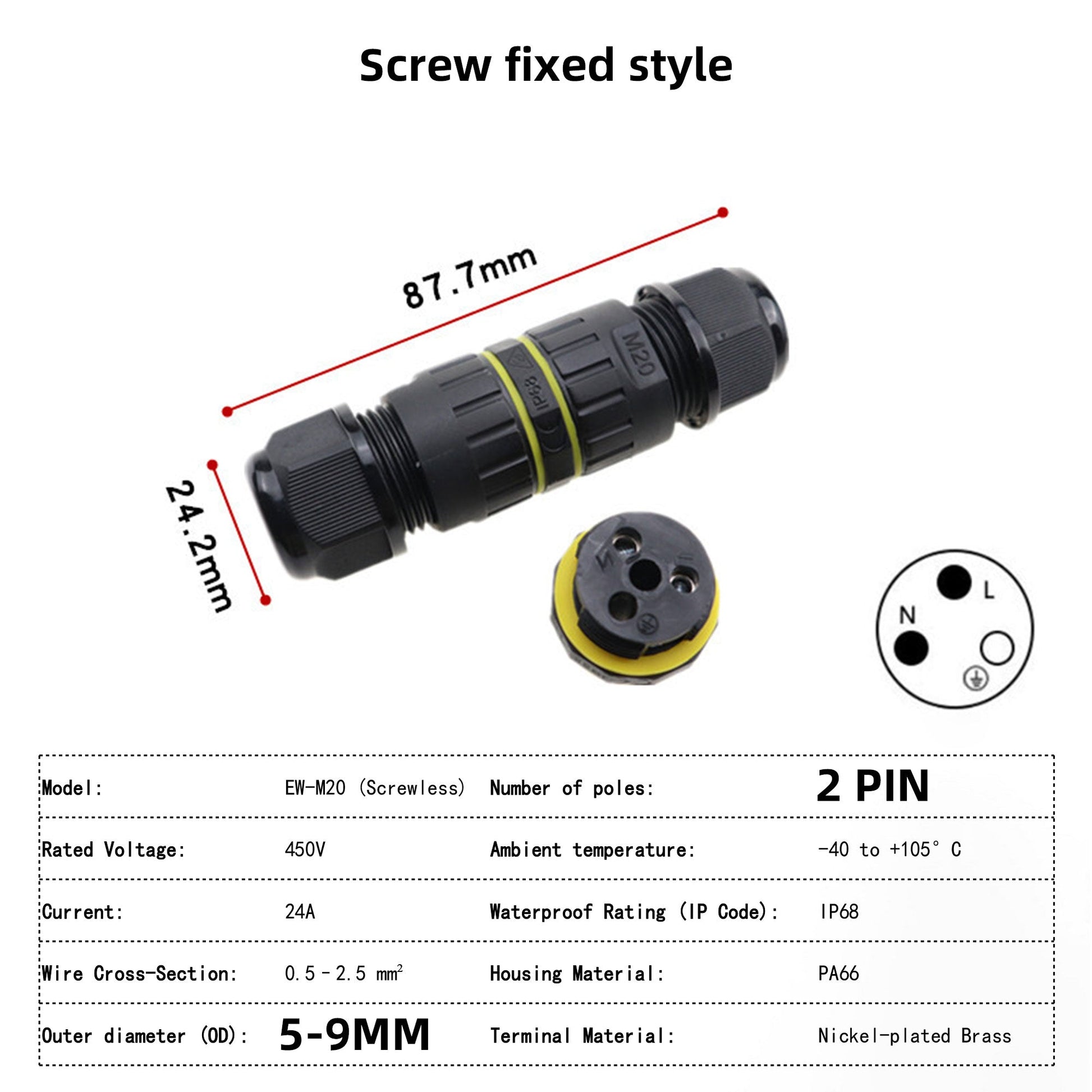

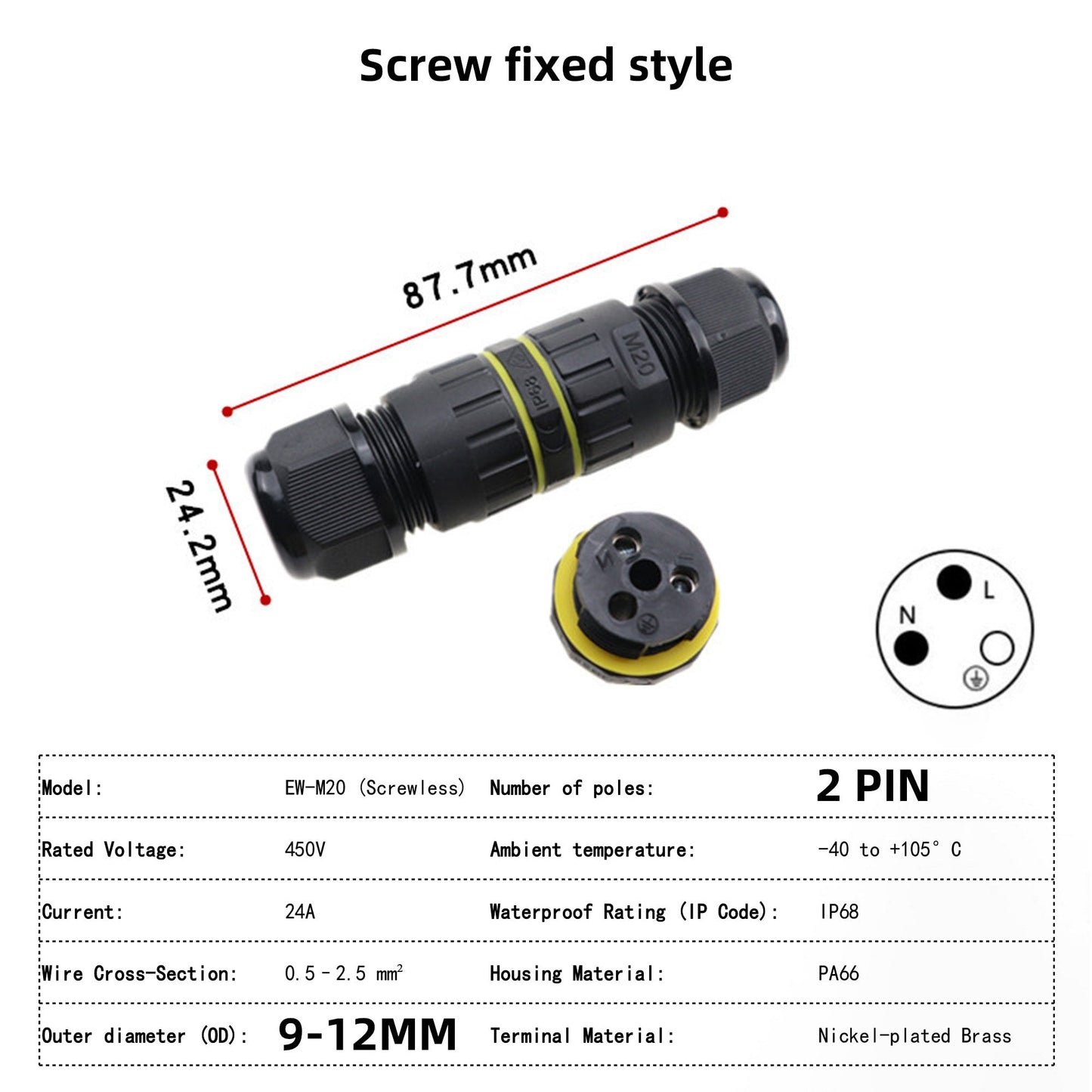

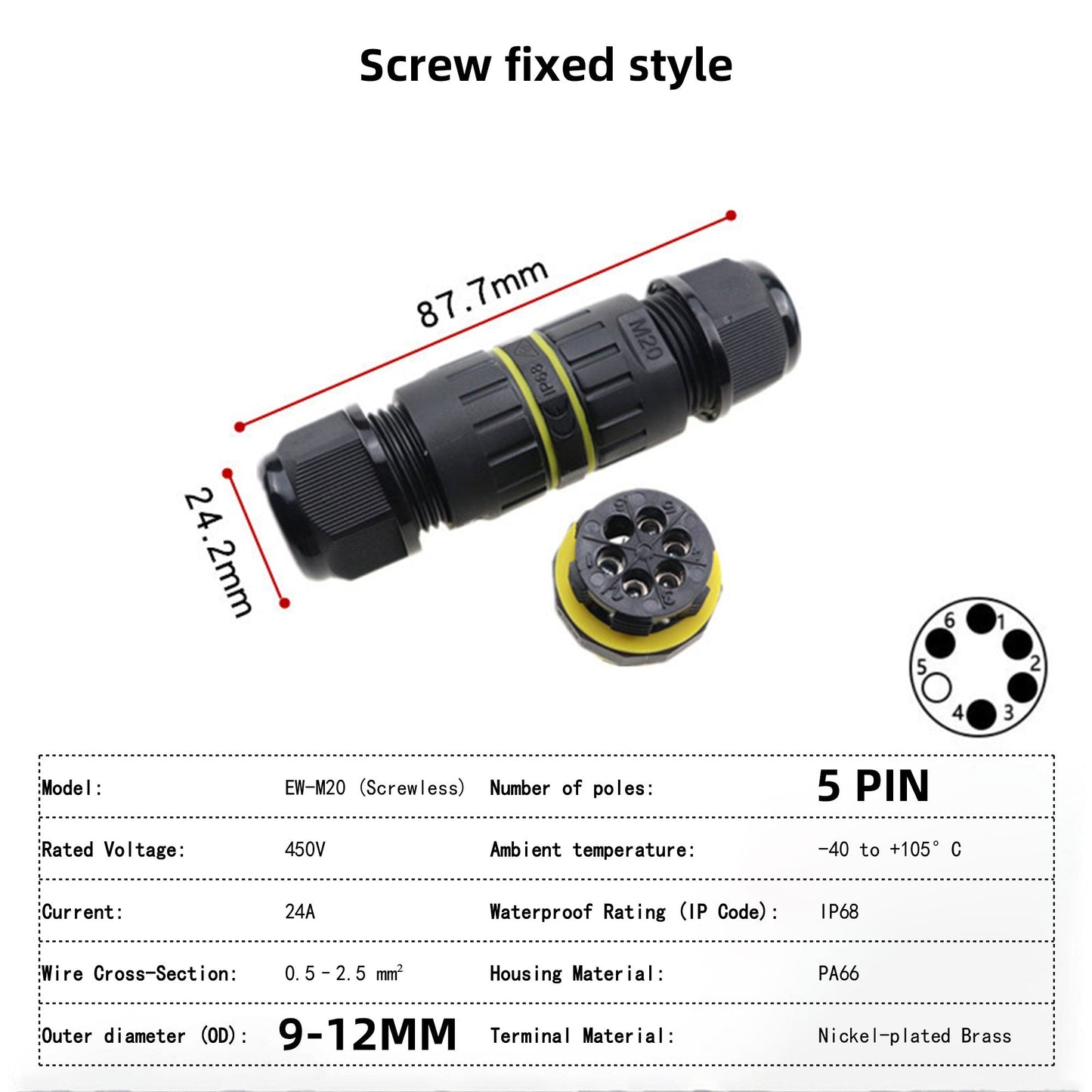

Product Specifications
Waterproof Rating
IP68 (submersible grade)

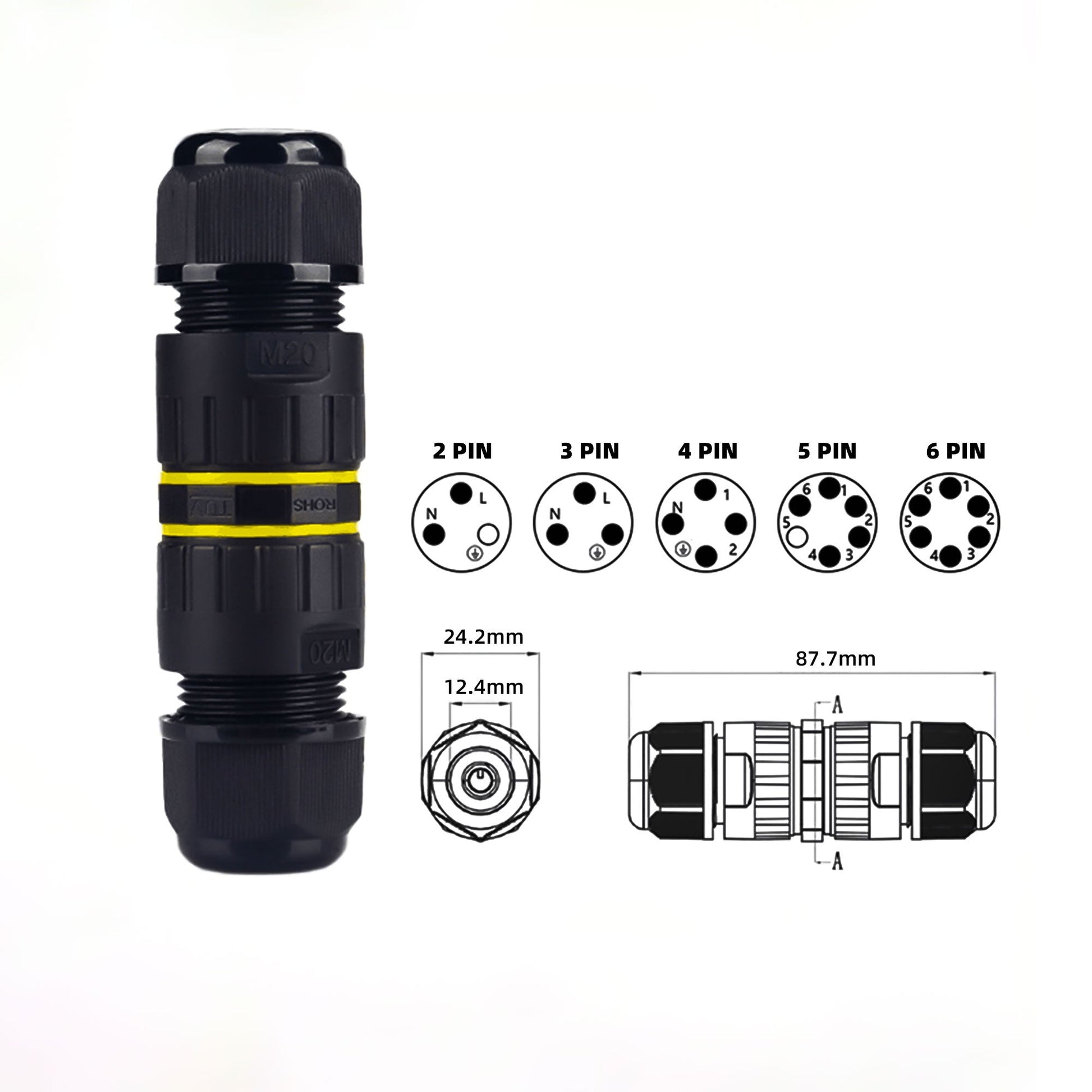

Pin Options
2-Pin, 3-Pin, 4-Pin
Cable Compatibility
5-9mm diameter and 9-12mm diameter cables
Material
Heavy-duty UV-resistant PVC with internal silicone gel seal
Pack Sizes
2 pcs to 20 pcs per pack
Working Temperature
-20°C to +105°C
Rated Voltage
450V AC 24A
Common Applications
Garden and landscape lighting · Pond and fountain underwater fixtures · Marine and dock lighting · Outdoor deck and patio strips · Pool area perimeter lighting · Pathway and driveway in-ground lights · Irrigation system wiring · Outdoor security camera power connections
Package Includes
Selected quantity of IP68 waterproof inline LED connectors (selected pin count and cable range). LED strips, cables, and power supplies are NOT included.
Frequently Asked Questions
Q: What is the difference between the 5-9mm and 9-12mm cable ranges? A: The 5-9mm range is designed for standard LED strip extension cables (typically 18-22AWG). The 9-12mm range accommodates thicker outdoor-rated cables with heavier insulation for long-distance runs.
Q: Are these connectors reusable? A: Once tightened, the internal gel seal forms a permanent bond. While the connector can be unscrewed, the gel seal is single-use. For best results, install once and leave sealed.
Q: Can these be buried directly in soil? A: Yes, the IP68 rating means the connector is fully protected against dust ingress and continuous immersion, making it suitable for direct burial and underwater applications.
