4010A Recessed LED Aluminum Profile - 40mm Dual-Strip Channel (1m/2m)
4010A Recessed LED Aluminum Profile - 40mm Dual-Strip Channel (1m/2m)
Couldn't load pickup availability
Please verify dimensions and specifications before ordering. Custom and cut-to-length products are final sale.
4010A Dual-Strip LED Aluminum Profile - 40mm Two-Channel Recessed Linear Housing (1m/2m)
The MXNOVA 4010A is a dual-strip recessed LED aluminum profile with a 40mm wide body designed to house two LED strips side by side. This dual-channel configuration enables independent control of warm and cool white strips, tunable-white lighting setups, or double the lumen output. The black anodized finish provides a sleek, modern look for high-end installations.
Key Features
- Dual LED Strip Channels: Two separate channels allow simultaneous installation of warm and cool white strips for tunable-white lighting or doubled brightness output.
- 40mm Profile Width: Compact enough for residential use while providing dual-strip capacity for advanced lighting control and flexibility.
- Black Anodized Finish: Sleek black aluminum blends into dark ceilings and modern interiors for a sophisticated, understated appearance.

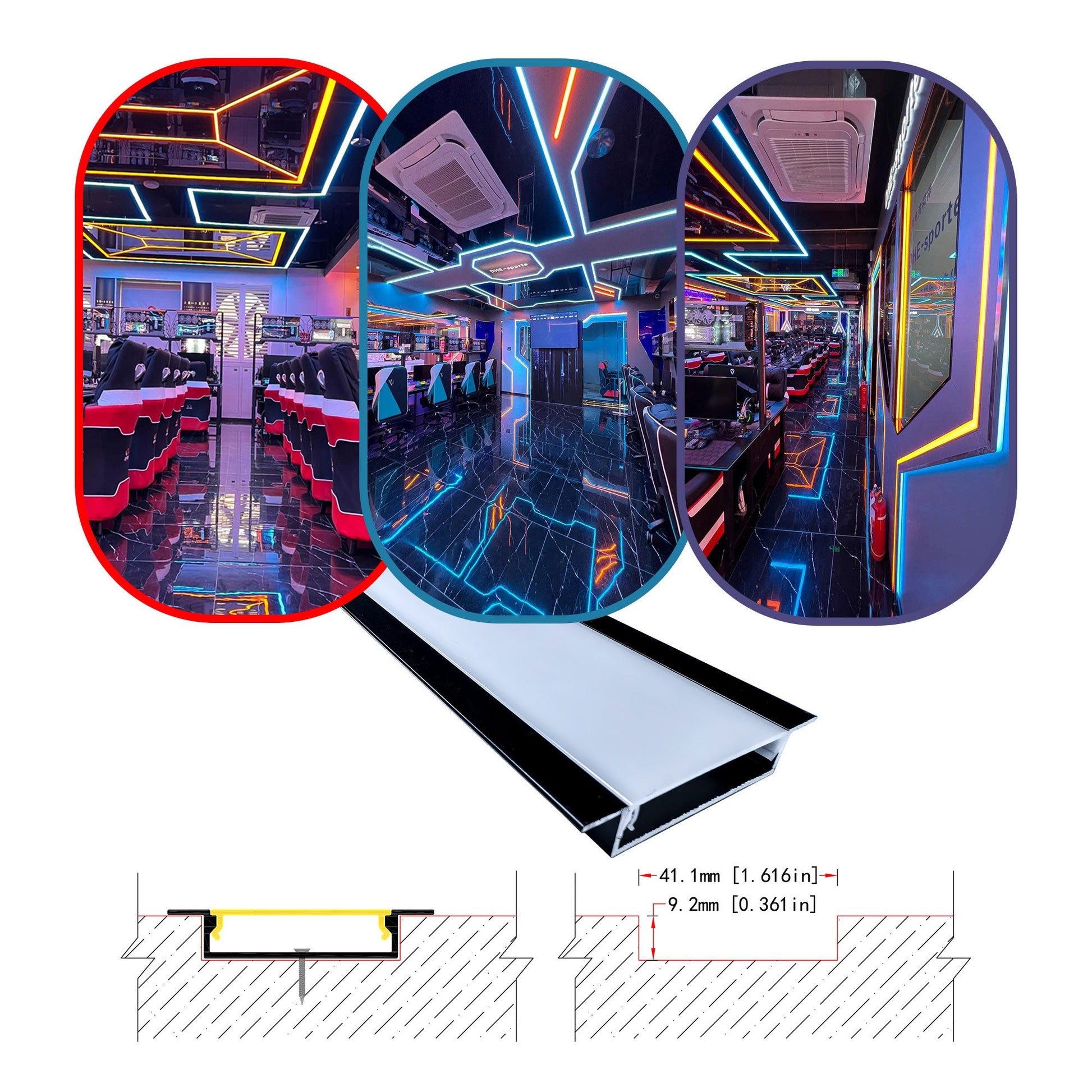

- Recessed Flush Mount: Flanged design installs flush with drywall or wood panels for a seamless architectural finish with no visible fasteners.
- Independent PC Diffusers: Each channel includes a separate snap-fit PC cover for uniform light diffusion and easy maintenance access.

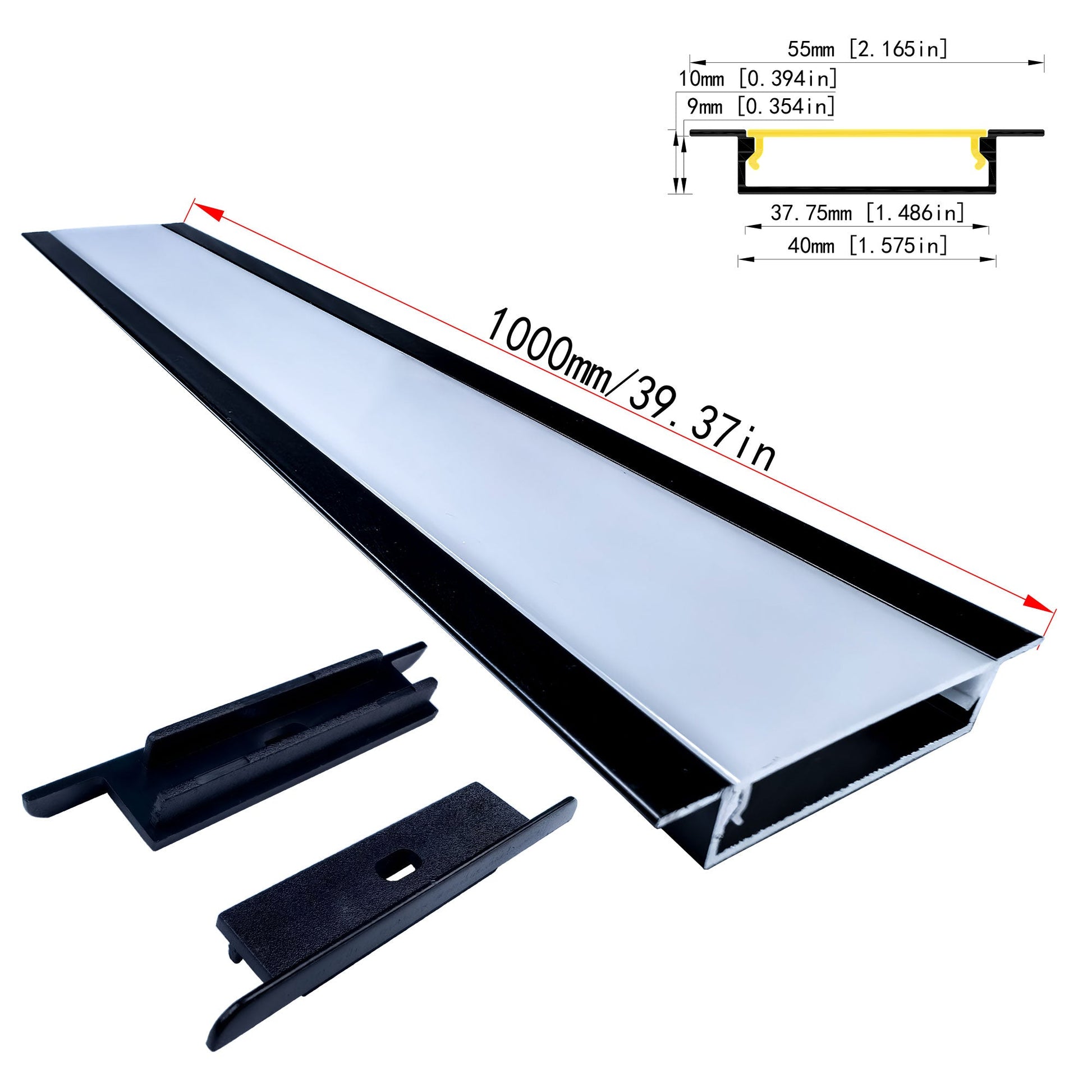

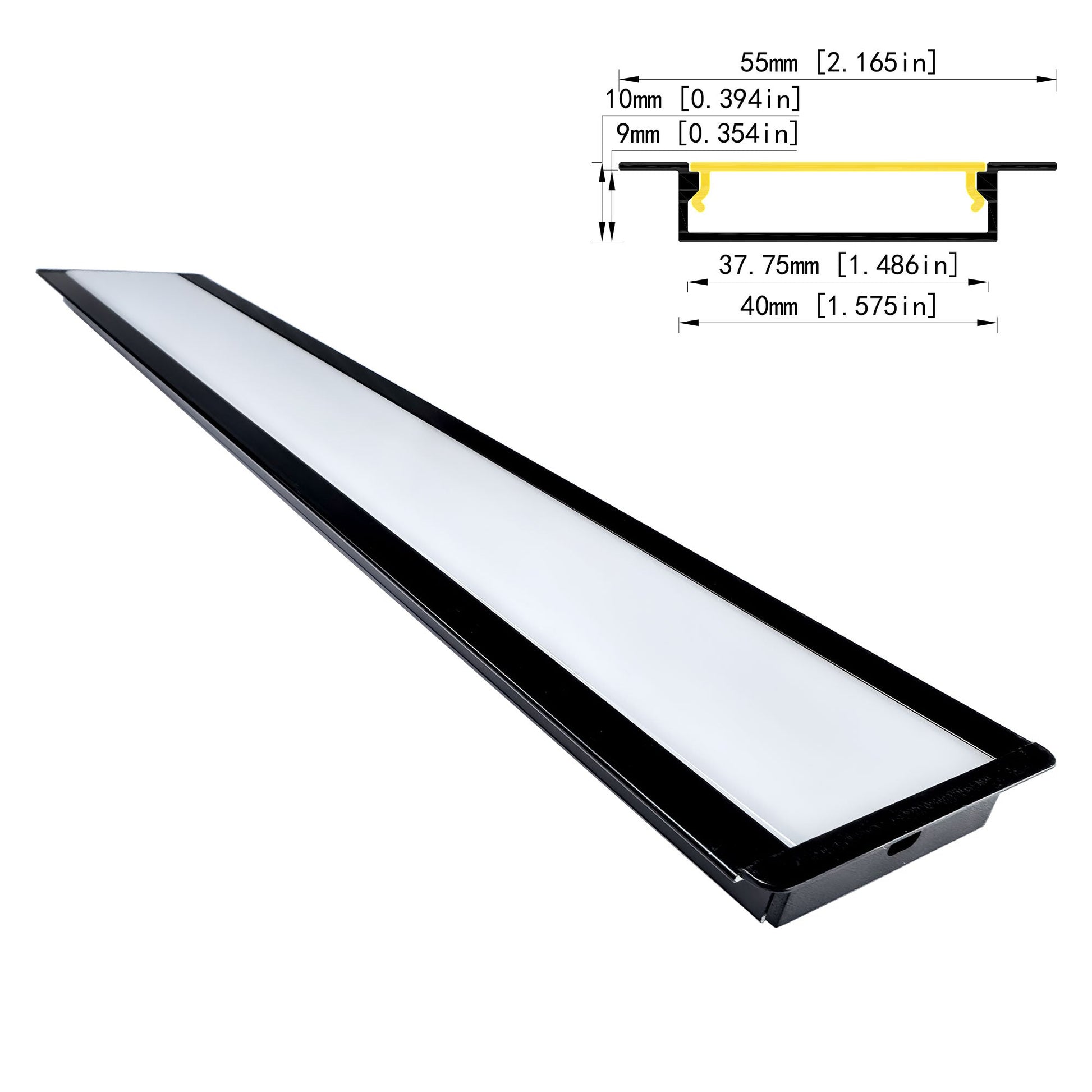

Product Specifications
| Model | 4010A |
| Material | Anodized Aluminum 6063-T5 + PC Diffusers |
| Profile Width | 40mm |
| Channels | 2 (Dual-Strip) |
| Finish | Black Anodized Aluminum |
| Available Lengths | 1m / 2m |
| Quantity Options | 2, 5, 10 pcs |
| Installation Type | Recessed (Flush Mount) |
| Compatible Strip Width | Up to 8mm per channel |

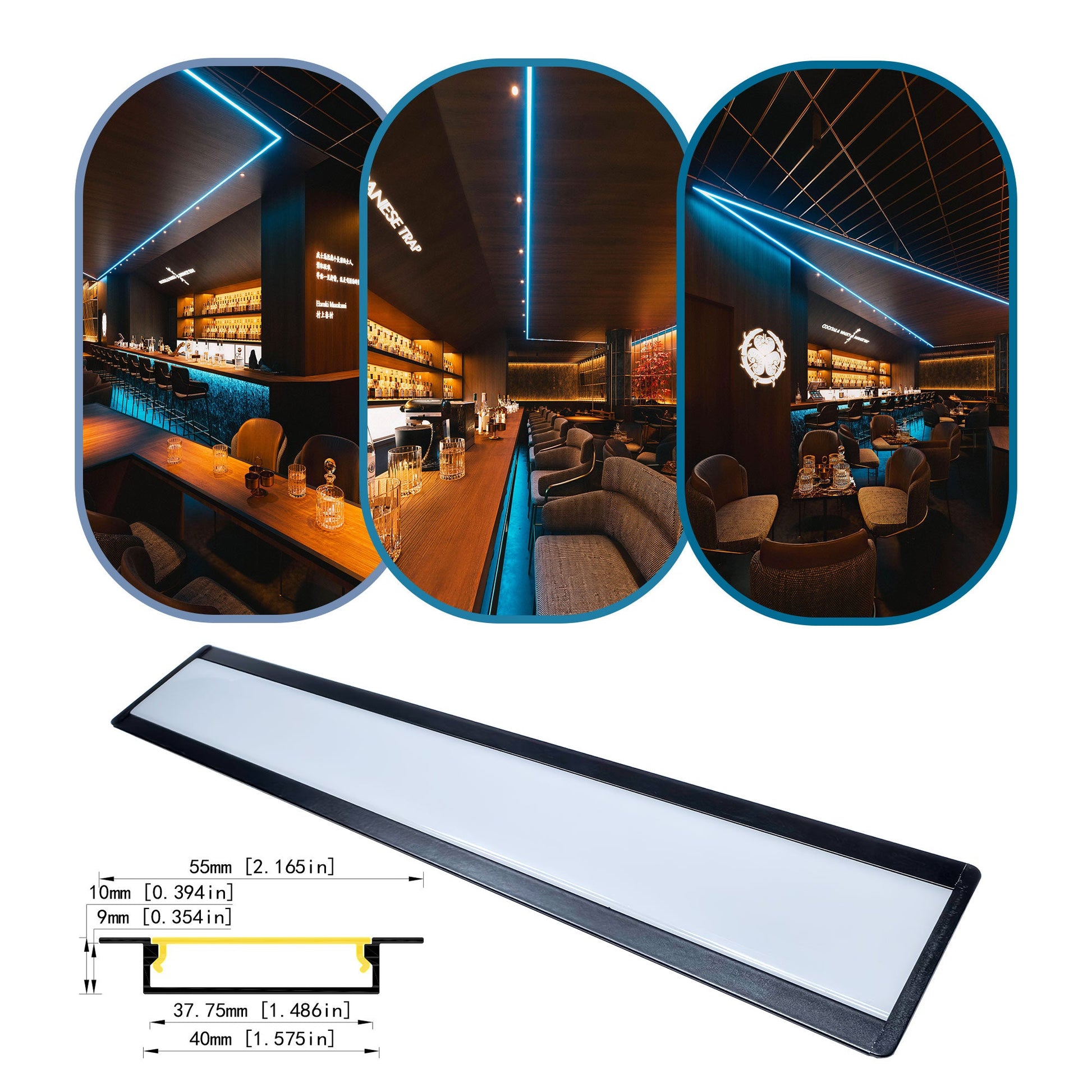

Common Applications
Tunable-White Ceilings · High-Brightness Office · Conference Room Linear · Restaurant Ambient + Task · Hotel Suite Dual-Tone · Showroom Display · Modern Residential · Gallery Adjustable Lighting
Package Includes
Aluminum dual-channel profile with two PC diffusers (per selected length/quantity), end caps, mounting clips. LED strips, controllers, and power supplies are NOT included.
Frequently Asked Questions
Q: Can I control each channel independently?
A: Yes, each channel accommodates a separate LED strip and can be wired to independent drivers or controllers for tunable-white or zoned lighting configurations.
Q: What is the advantage of a dual-strip profile over two single profiles?
A: The dual-strip design provides a unified, clean look with a single housing, simpler installation with one cavity to cut, and precise spacing between strips for consistent light blending.
Q: Does the black finish affect light output?
A: The black anodized housing body does not impact light output. The white PC diffusers maintain full transmission efficiency for both channels.
