1616H V-Shape LED Aluminum Corner Profile - 90° Edge Channel for 8mm 10mm COB RGB LED Strips, PC/Silicone Diffuser

1616H V-Shape LED Aluminum Corner Profile - 90° Edge Channel for 8mm-10mm COB RGB Strips, PC/Silicone Diffuser

The MXNOVA 1616H V-Shape LED Aluminum Corner Profile is a precision 90-degree edge-lighting channel engineered to mount seamlessly into wall-to-ceiling corners, cabinet junctions, and shelf edges without cutting drywall or routing grooves. Its 15.8x15.8mm V-shaped aluminum housing sits flush against two perpendicular surfaces, creating clean, symmetrical accent lighting that eliminates dark corners in US and Canadian homes, retail displays, and commercial interiors. The 10mm internal channel comfortably fits COB, RGB, and RGBW strips, while the choice of PC or silicone diffusers lets you dial in the exact ambiance—from crisp task lighting to soft, diffused glow.

Key Features

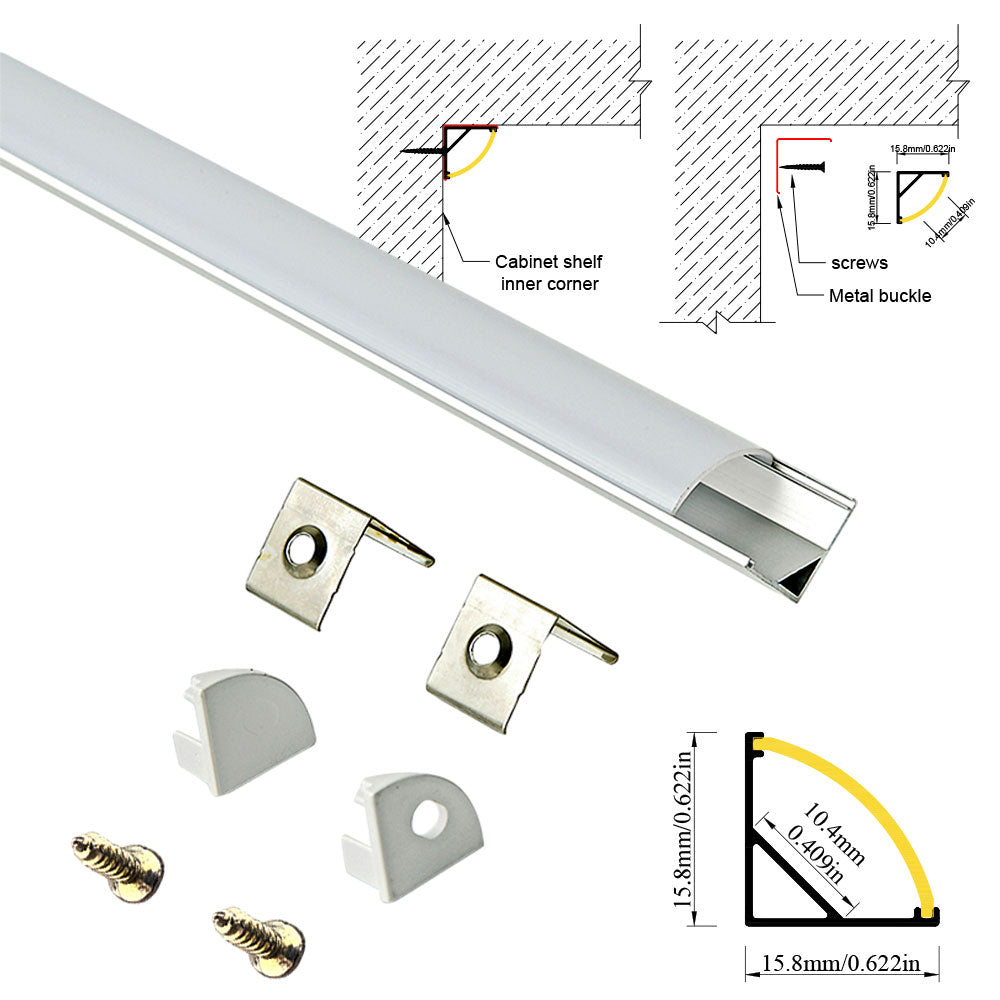

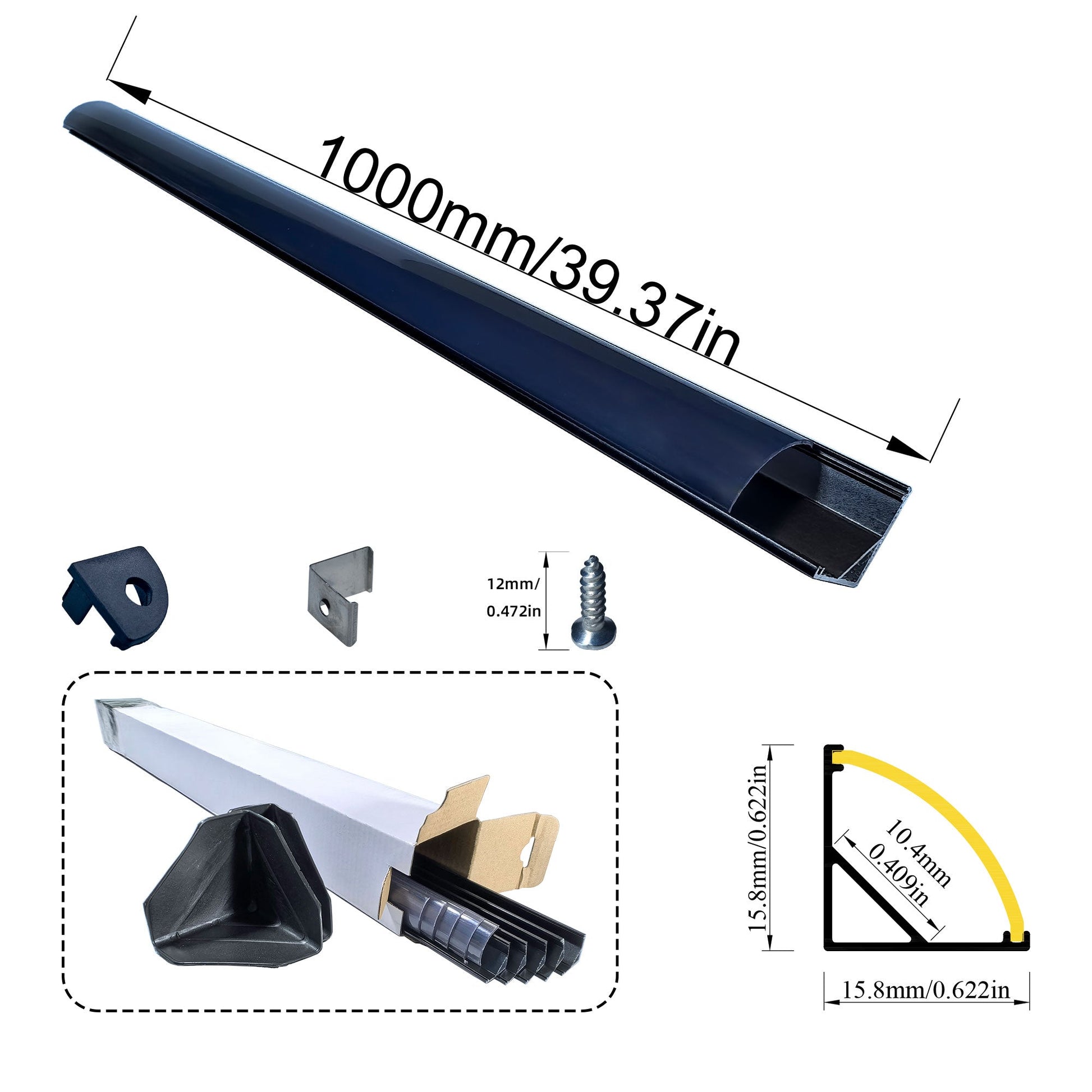

• Precision 90° V-Shape Geometry: The 15.8x15.8mm anodized aluminum channel mates perfectly with perpendicular surfaces for a seamless corner installation—no routing, drywall cutting, or complex framing required.
• Three Diffuser Options: White PC for clear, bright illumination; Black PC for high-contrast modern aesthetics; White Silicone for a softer, warmer glow with enhanced flexibility.

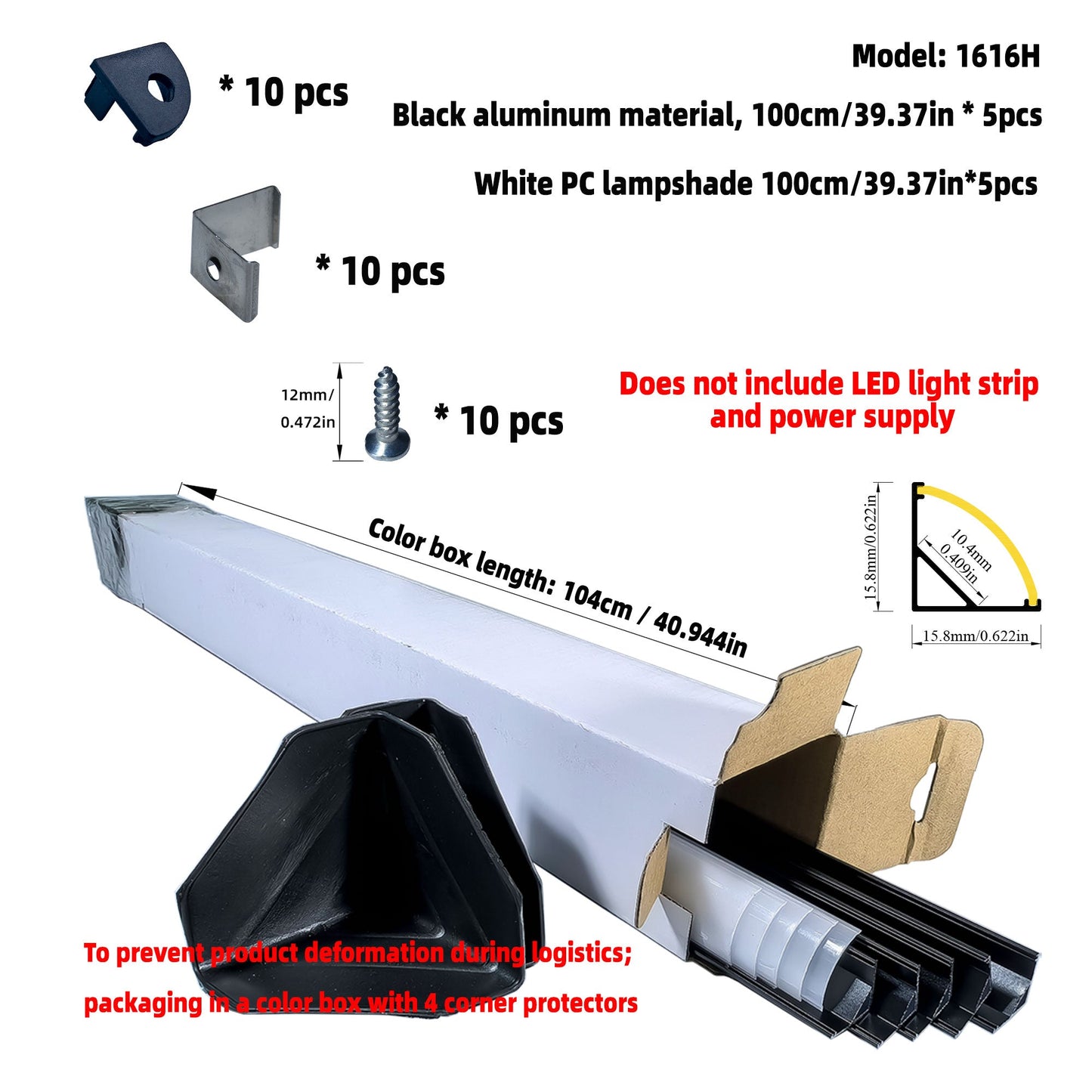

• Durable 6063-T5 Anodized Aluminum: Available in silver or matte black anodized finish, the marine-grade aluminum housing dissipates heat efficiently and resists corrosion in humid environments.
• Wide 10mm Internal Channel: Accommodates 8mm to 10mm wide LED strips including high-density COB, RGB, RGBW, and SMD strips for versatile lighting design.
• Complete Surface-Mount Kit: Each pack includes the aluminum channel, matching diffuser, end caps, and mounting clips—ready to install out of the box.

Product Specifications

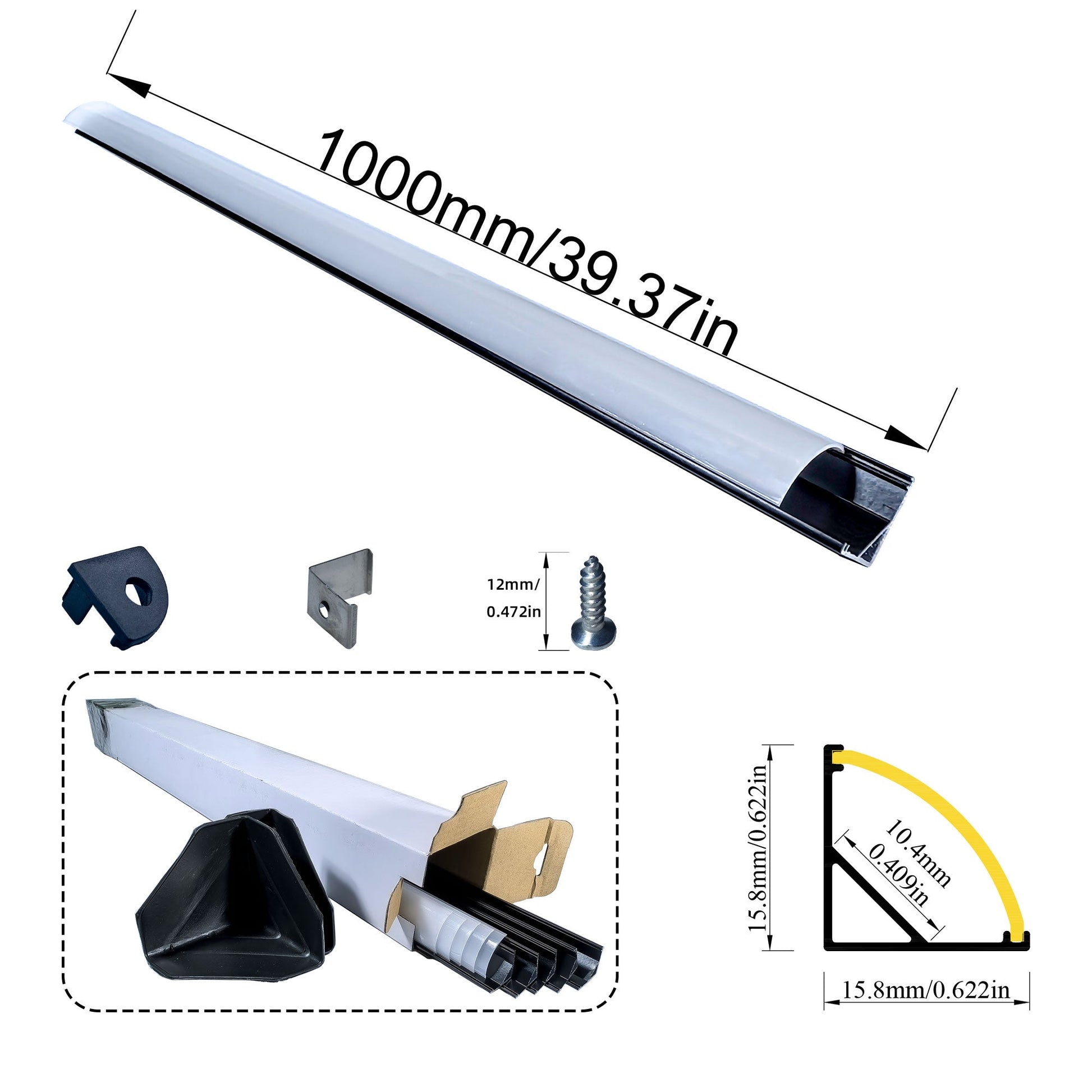

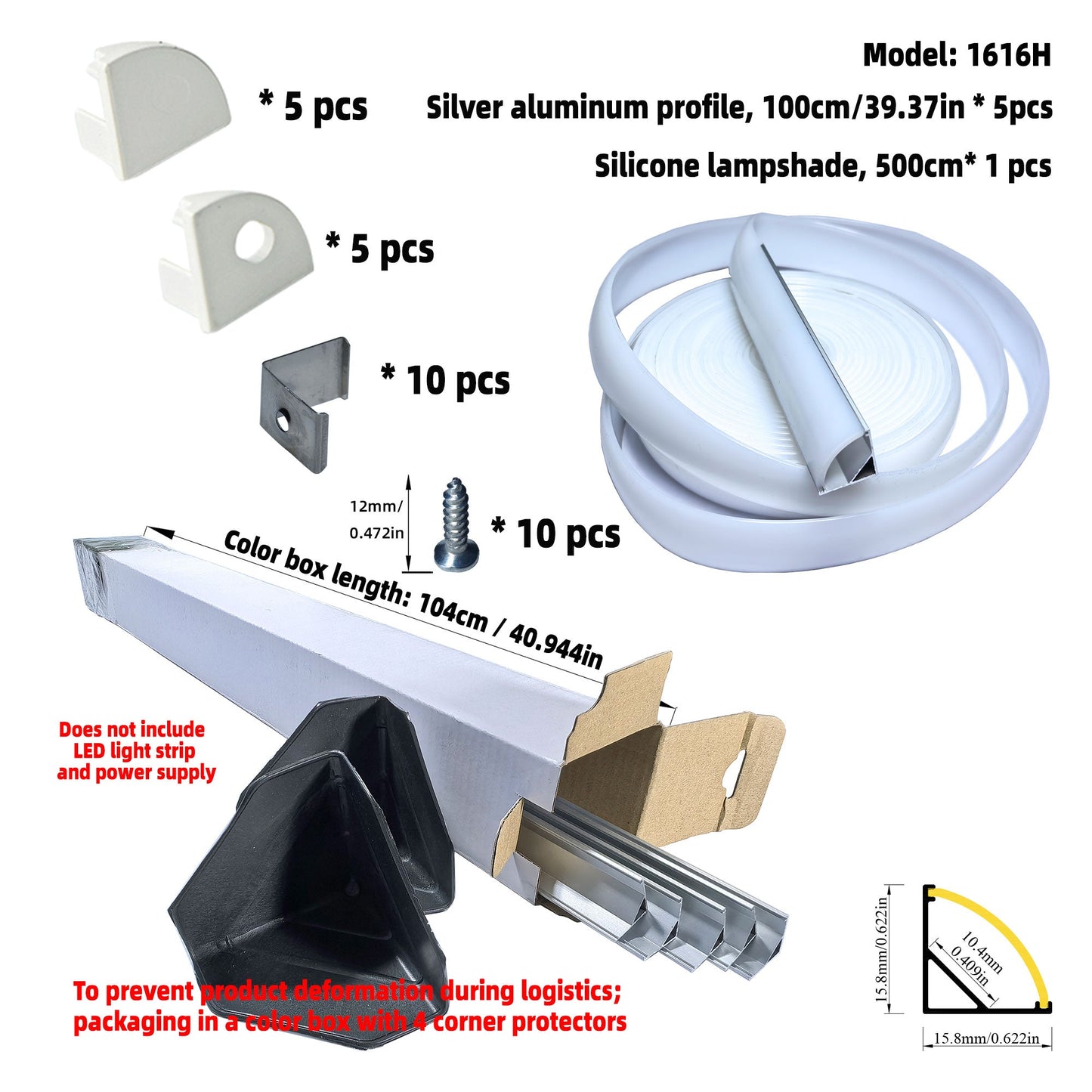

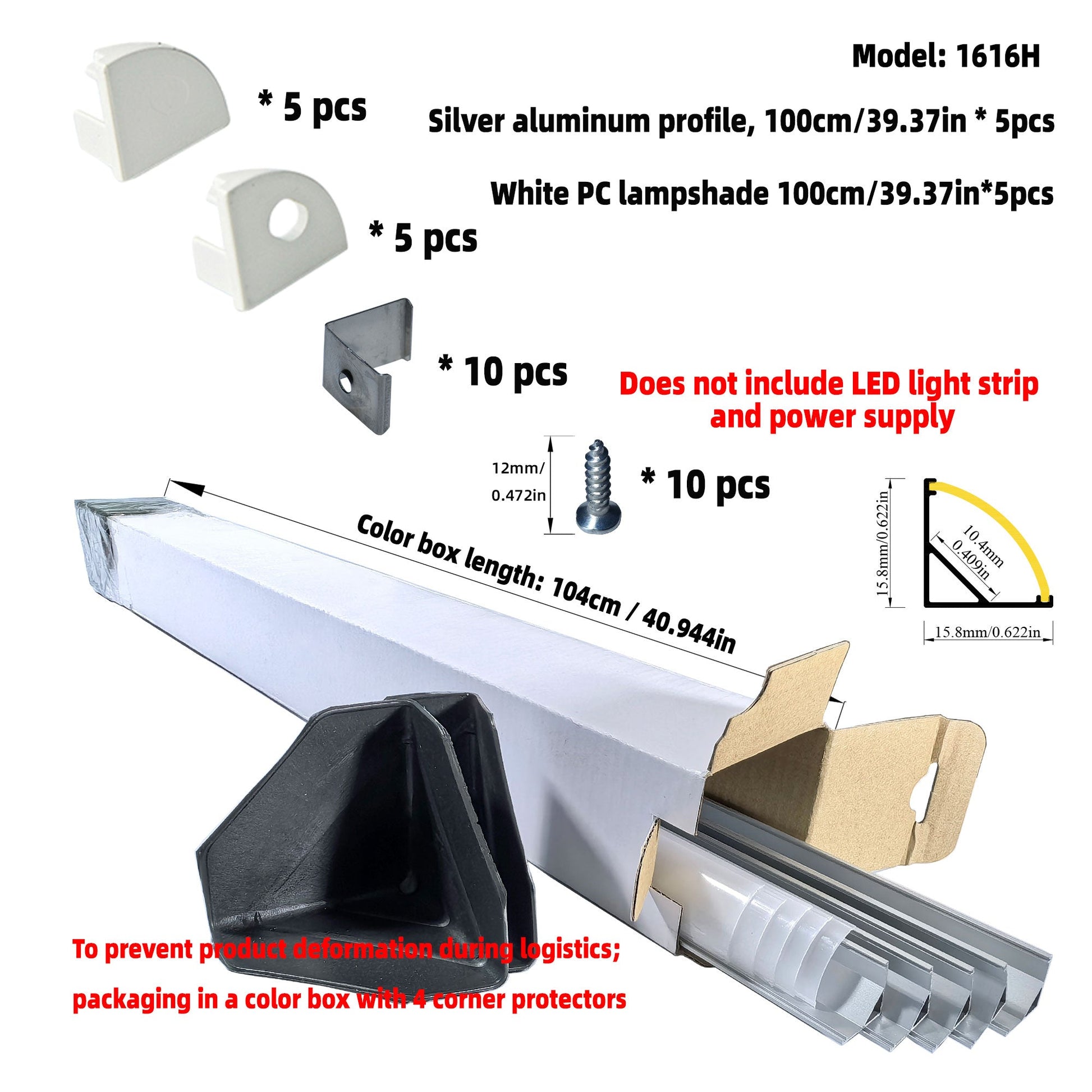

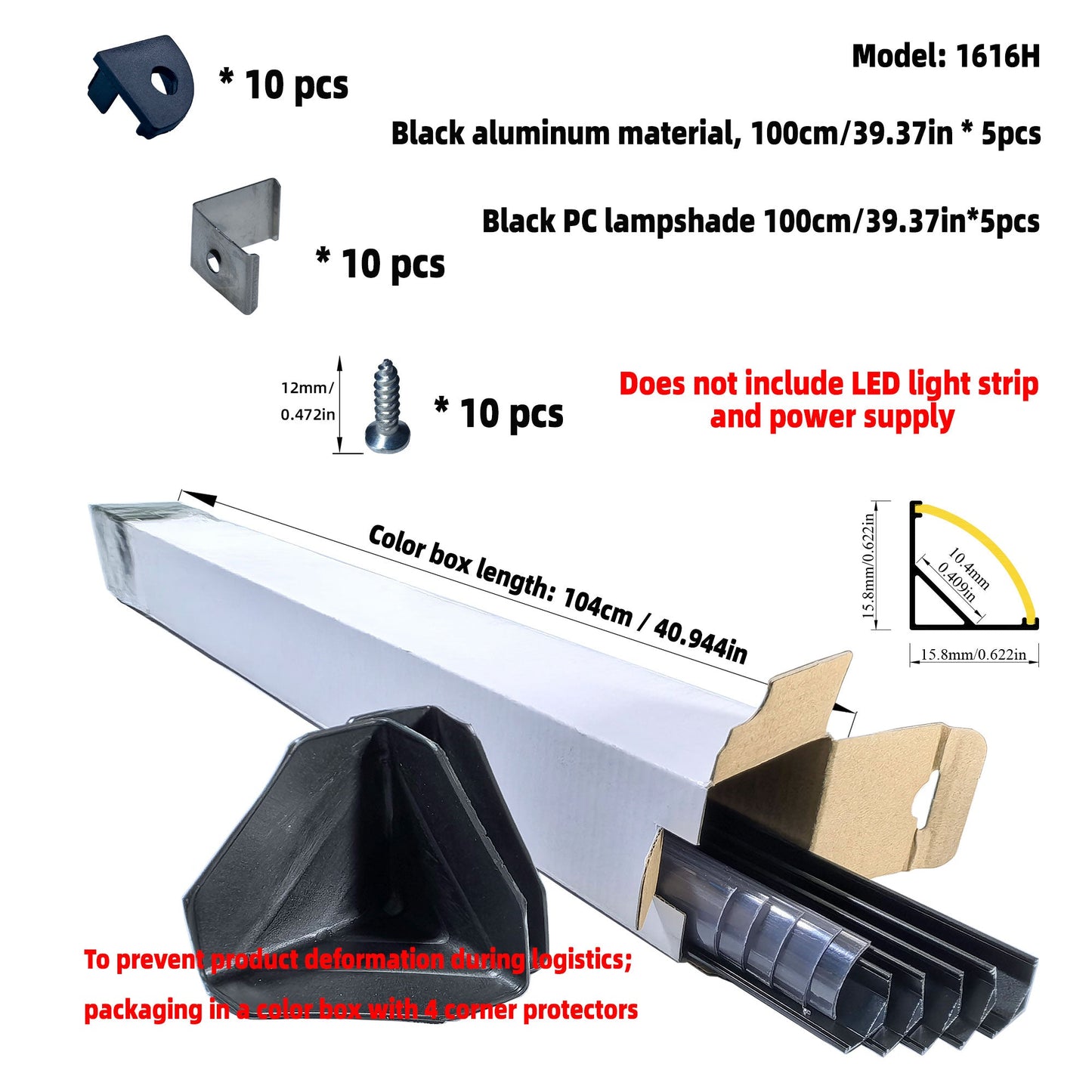

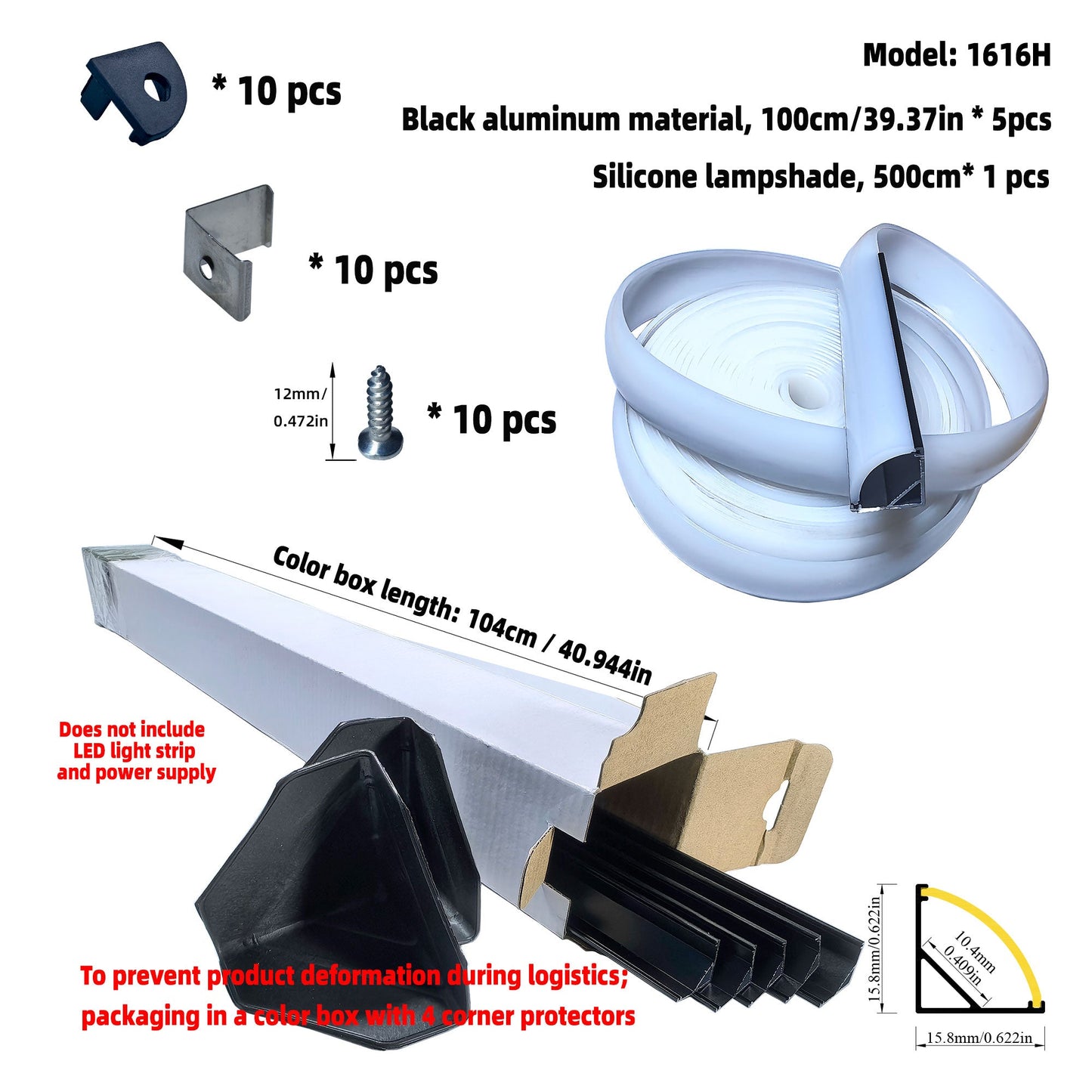

Package includes:

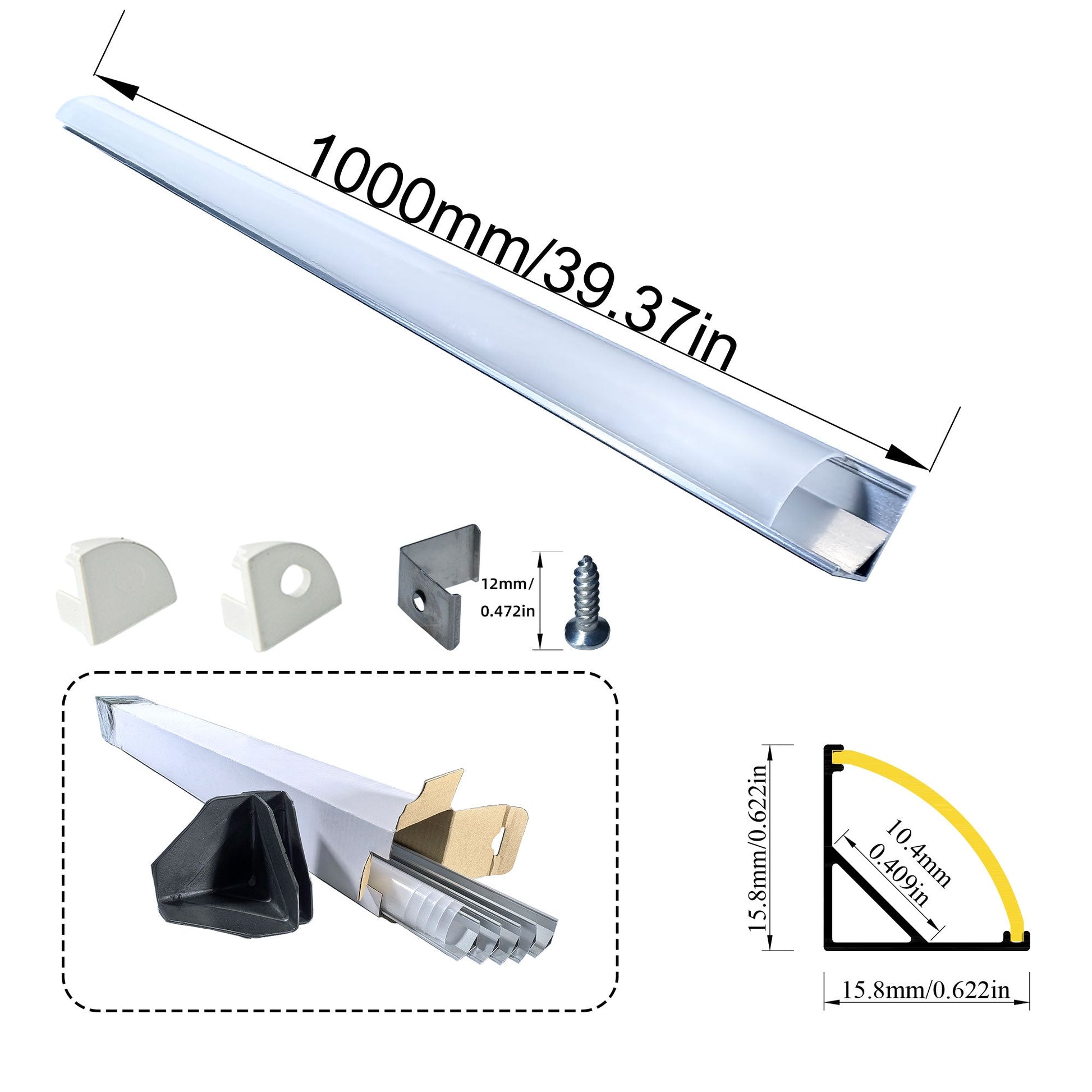

A specified quantity of 1616H aluminum profiles (1 meter or 2 meters long)

Matching diffuser (optional white PC, black PC, or white silicone)

Protective end caps (one pair per profile)

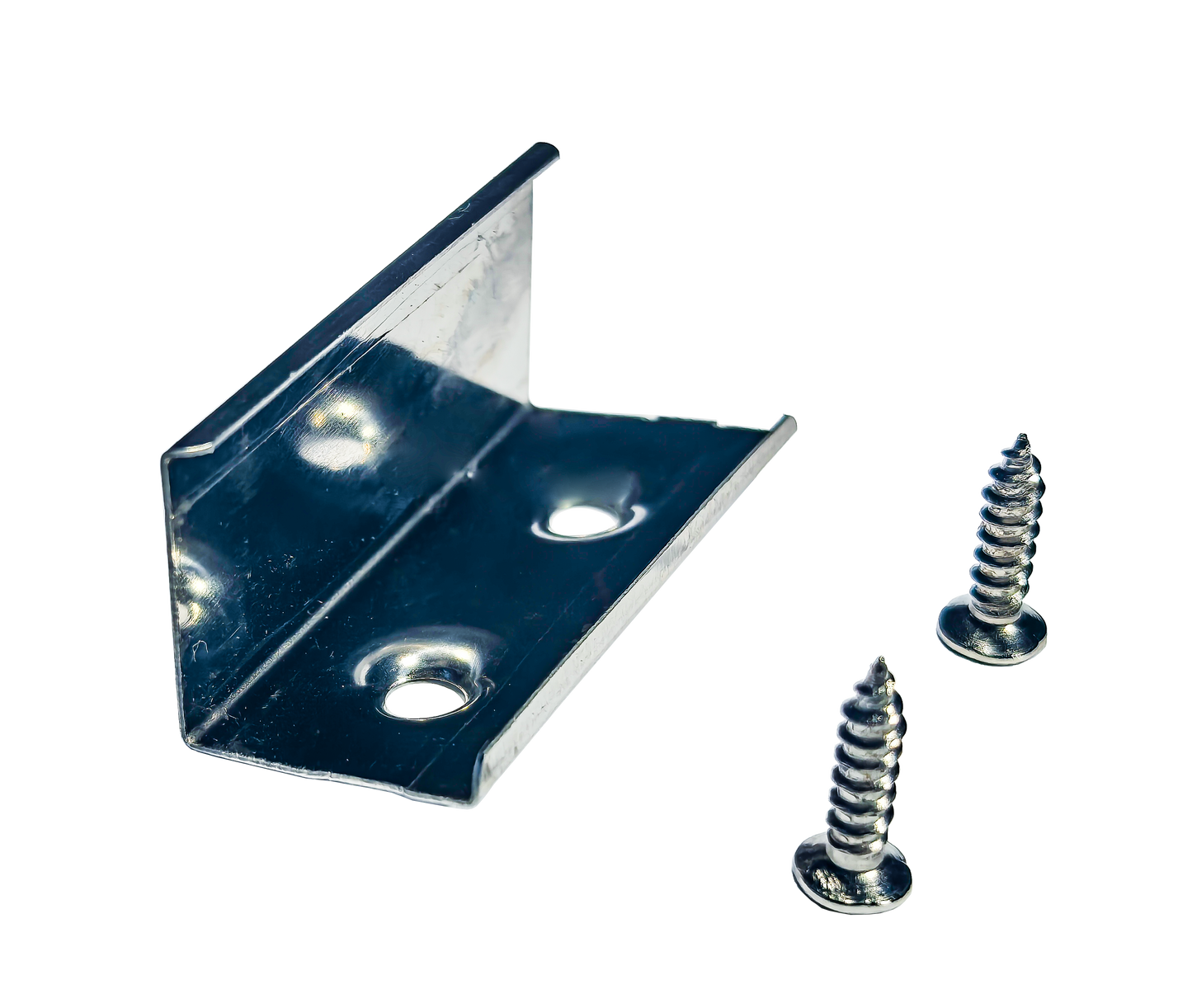

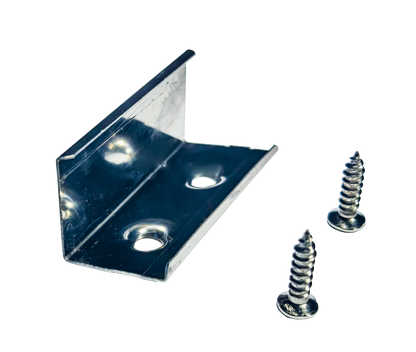

Stainless steel mounting clips (2 for each 1-meter profile / 3 for each 2-meter profile)

Screws for securing the mounting clips

Please note: LED strips, power supply/driver, dimmer controller, and corner connectors are sold separately. (These products are available in this store.)

Real-World Applications

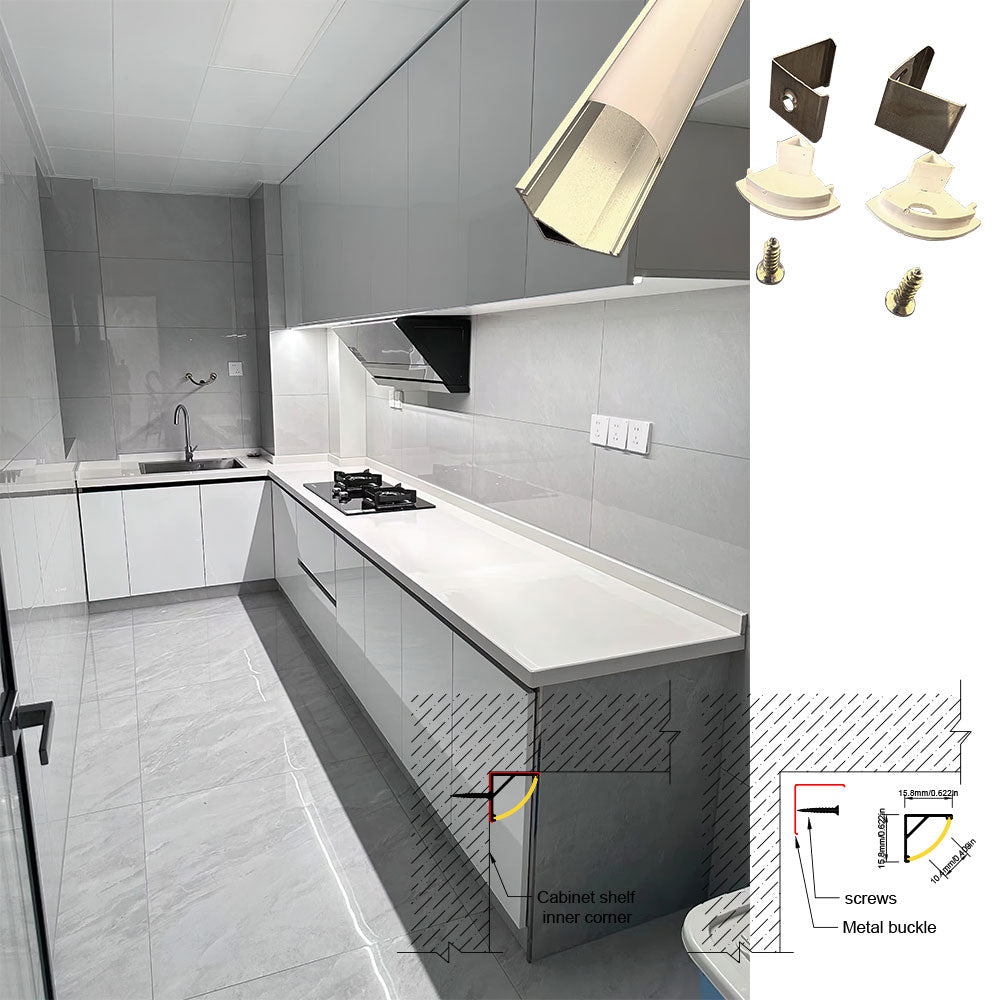

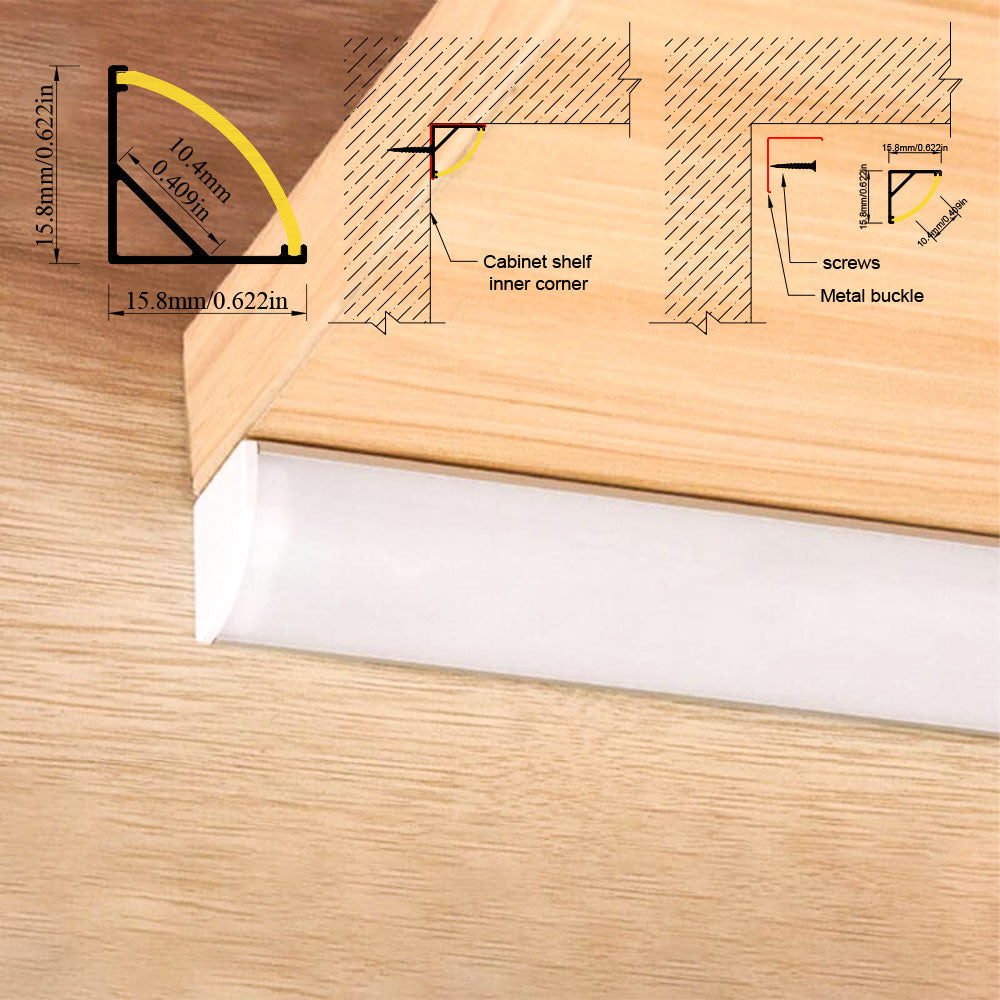

Kitchen Cabinet Corner Lighting: Illuminates the corner where the backsplash meets the bottom of the cabinet. The 45-degree beam angle eliminates shadows on the countertop, providing safe and even lighting for food preparation.

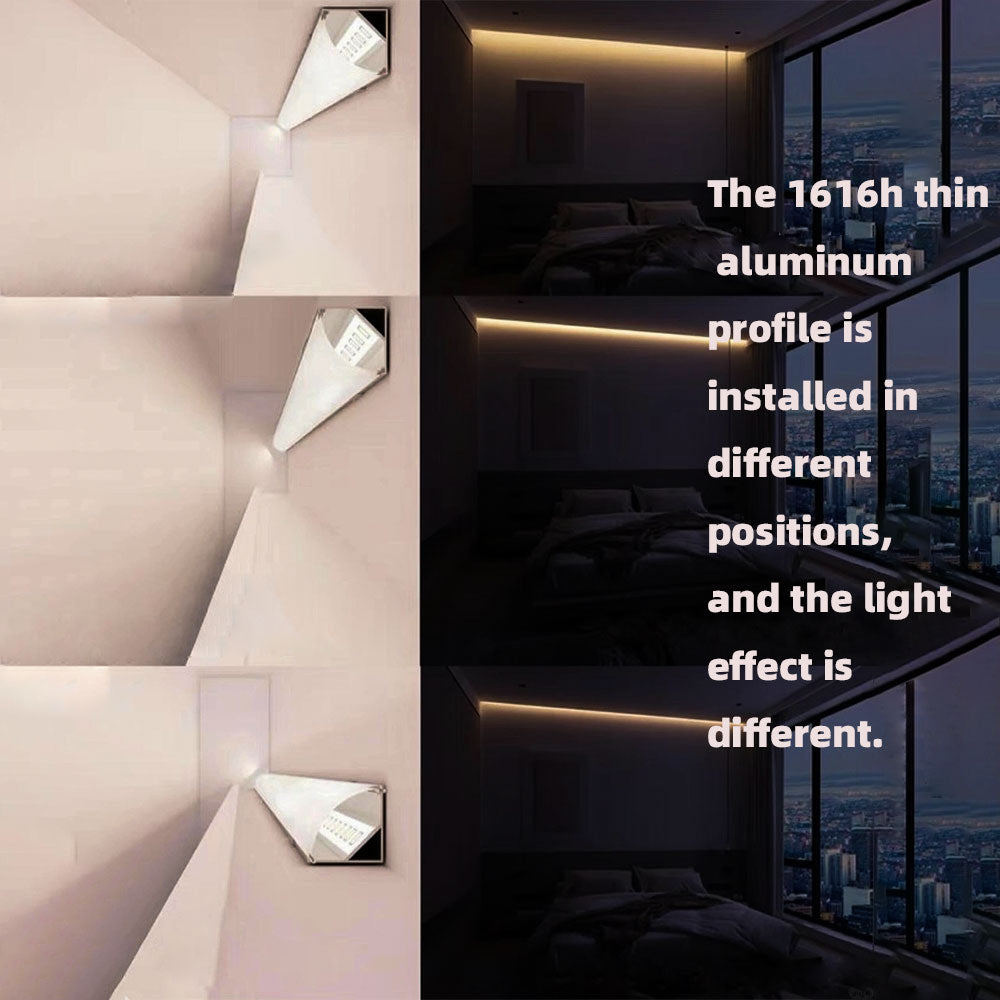

Crown Strip and Ceiling Recess Surface Mounting: Installing 1616H fixtures along the junction of the wall and ceiling creates soft, indirect upward lighting, making the room appear taller and more spacious. Ideal for open-plan living rooms and dining rooms. Retail Display and Shelf Edge Lighting: Illuminate the leading edges of glass or wooden shelves to attract customers' attention. Spotless COB lighting creates a high-end retail aesthetic.

Bathroom Niche and Shower Entry Lighting: Add a luxurious, spa-like glow to recessed shower niches or vanity corners. Anodized aluminum maintains its performance even in high humidity environments. Waterproof LED strips are recommended for damp environments and are available in our store.

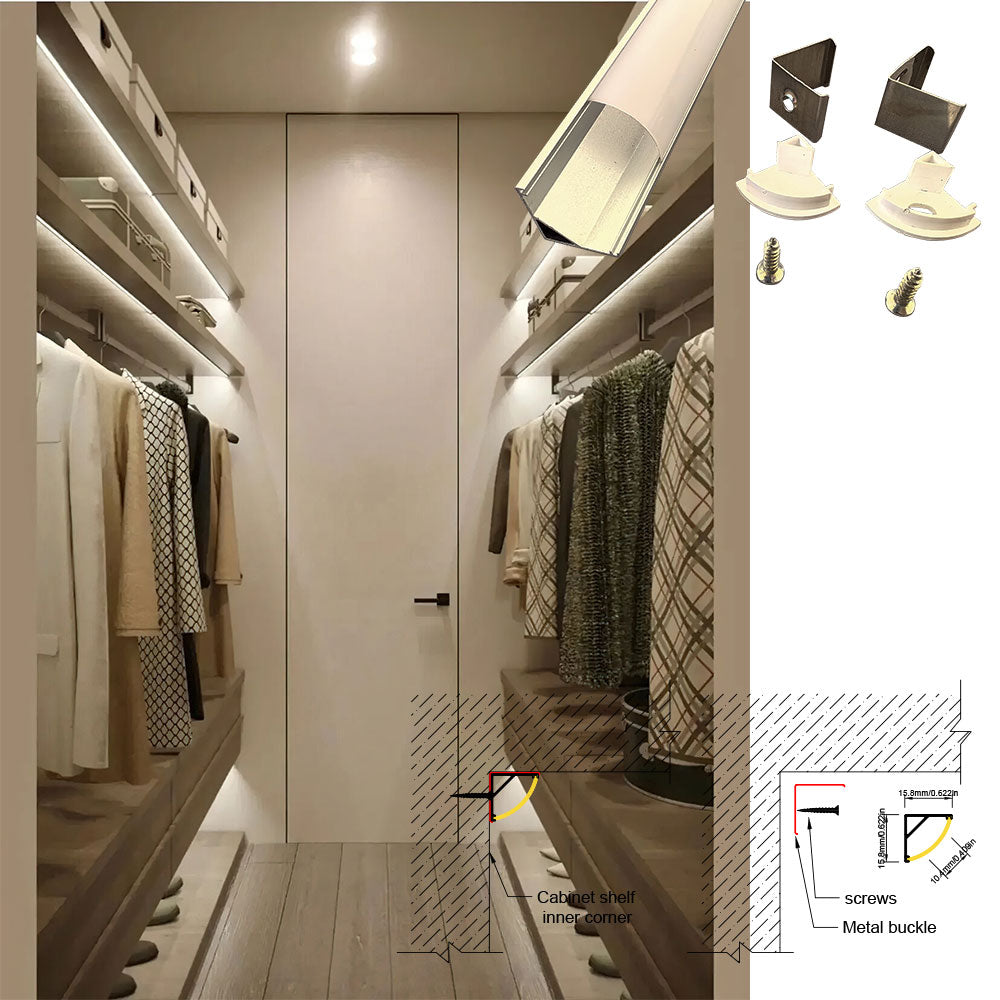

Wardrobe and Walk-in Closet Interior Lighting: Installed in the upper corners of recessed wardrobes, this provides shadowless lighting for hanging clothes and shelves, creating a boutique-like dressing room experience.

Staircase and Corridor Safety Lighting: Installed along the inner corners of stair joists or corridor walls, this low-profile, glare-free directional lighting enhances safety without disturbing sleep.

Frequently Asked Questions

Q: Can I cut 1616H profiles to the required length?

A: Yes. 6063-T5 aluminum profiles can be easily cut to the desired size using a fine-tooth hacksaw or a miter saw with a non-ferrous metal blade. We recommend you take two careful measurements and remove any burrs from the cut edges with a file before installing the diffuser and end caps for a perfect surface finish.

Q: What's the difference between PC and silicone diffuser covers?

A: PC diffuser covers are rigid and provide clear, bright, and highly uniform light, ideal for work lighting and commercial applications. Silicone diffuser covers are soft and flexible, producing warmer, softer, and more comfortable light, similar to traditional neon tubes. Silicone is best suited for ambient, decorative, and mood lighting in residential spaces.

Q: Is this product compatible with RGB or RGBW LED strips?

A: Absolutely. The 10mm inner groove of the 1616H is compatible with any LED strip with a width not exceeding 10mm, including monochrome, adjustable white, RGB, and RGBW strips. Just ensure the PCB width of the selected strip does not exceed 10mm for perfect installation.

Q: How do I handle the inner and outer corners?

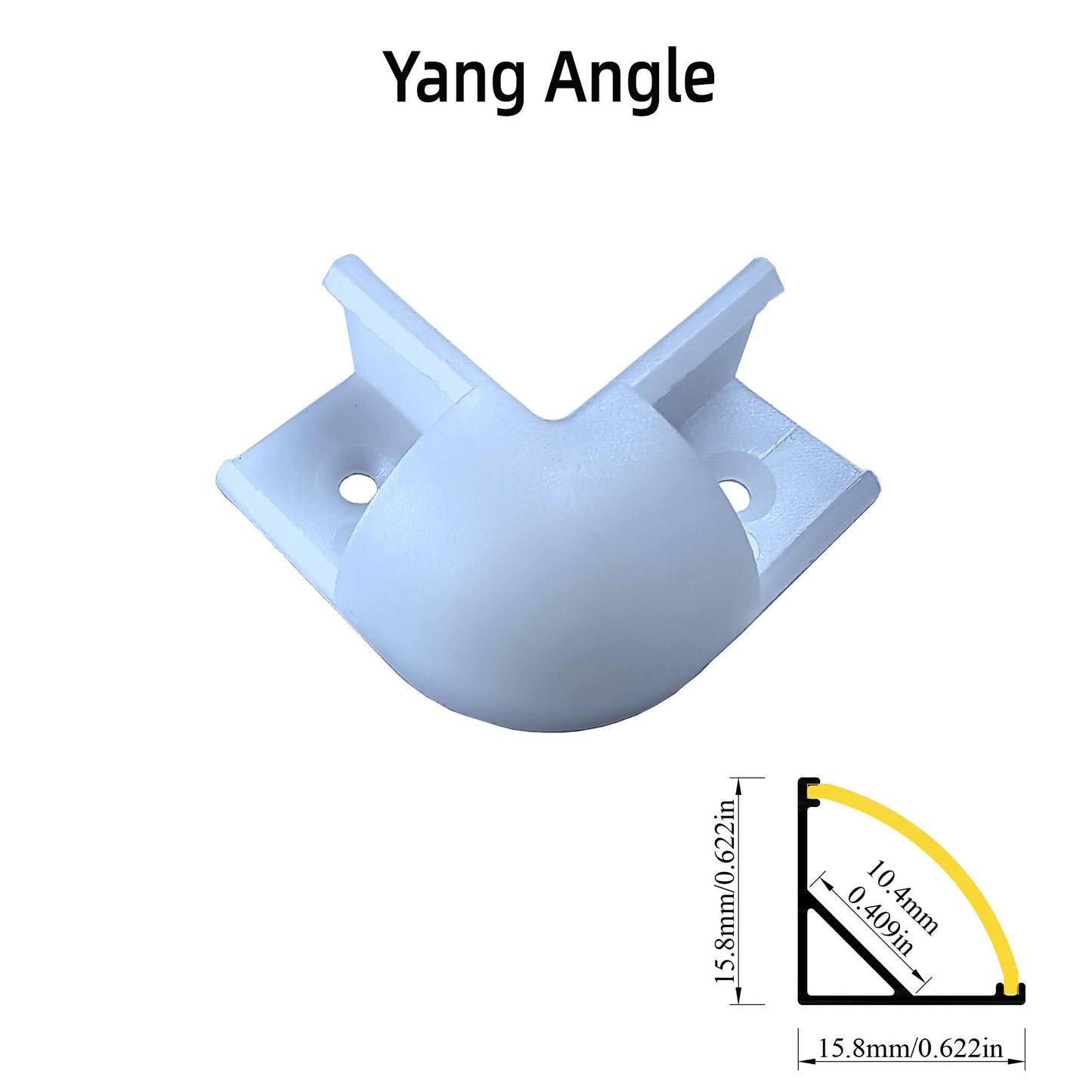

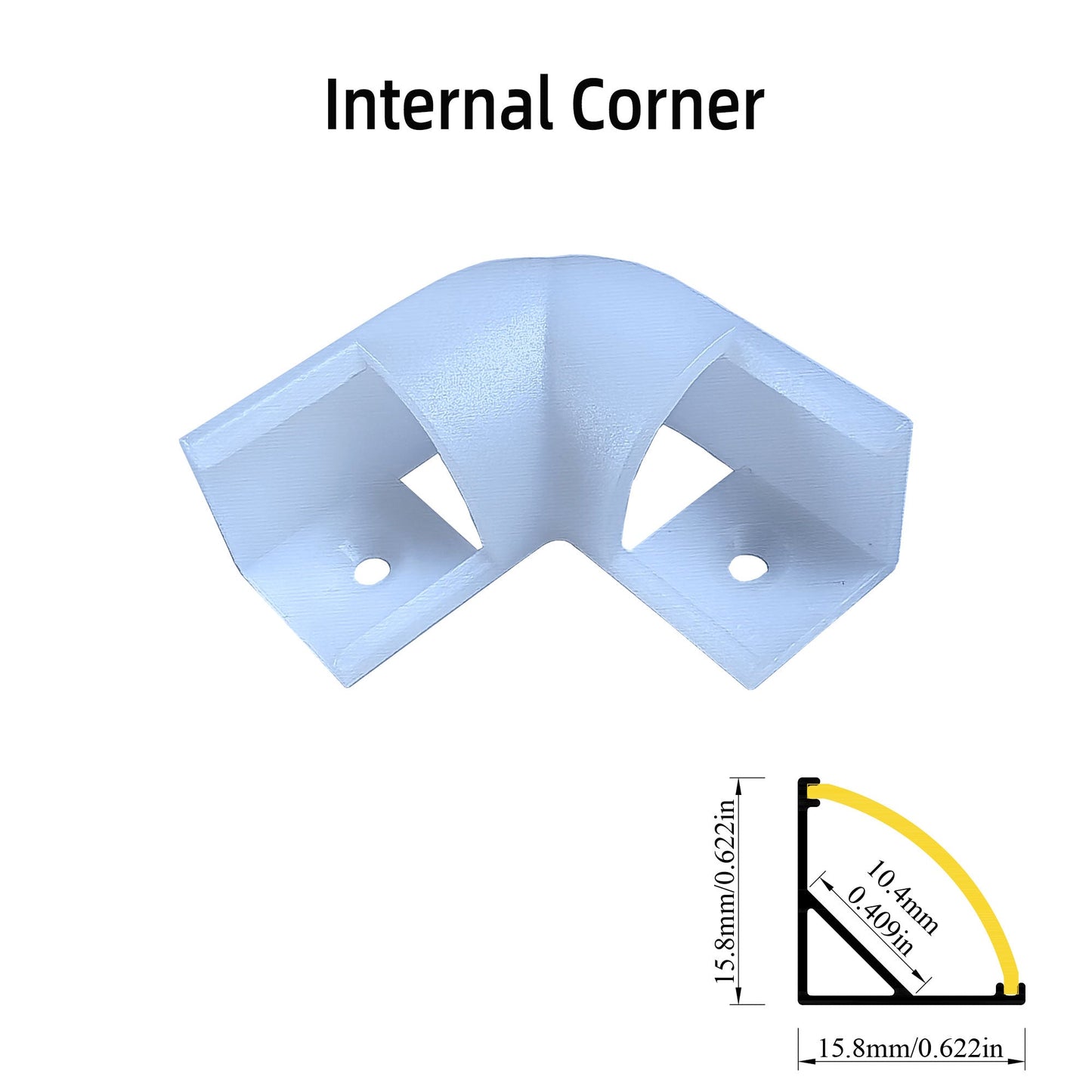

A: For a seamless look, we recommend beveling the aluminum profile at a 45-degree angle to create a clean 90-degree angle. LED strips can be carefully bent around the corner (if flexible enough) or connected using solder bridges or compatible strip connectors. Diffusers can be butt-jointed at corners for a continuous look. Inner and outer corner fittings are sold separately.

Q: Is this profile suitable for outdoor use?

A: The 1616H is designed for indoor environments (e.g., covered open areas, sheltered eaves). For fully exposed outdoor installations, we recommend using IP65+ rated LED strips with clear silicone end caps to prevent moisture ingress.
