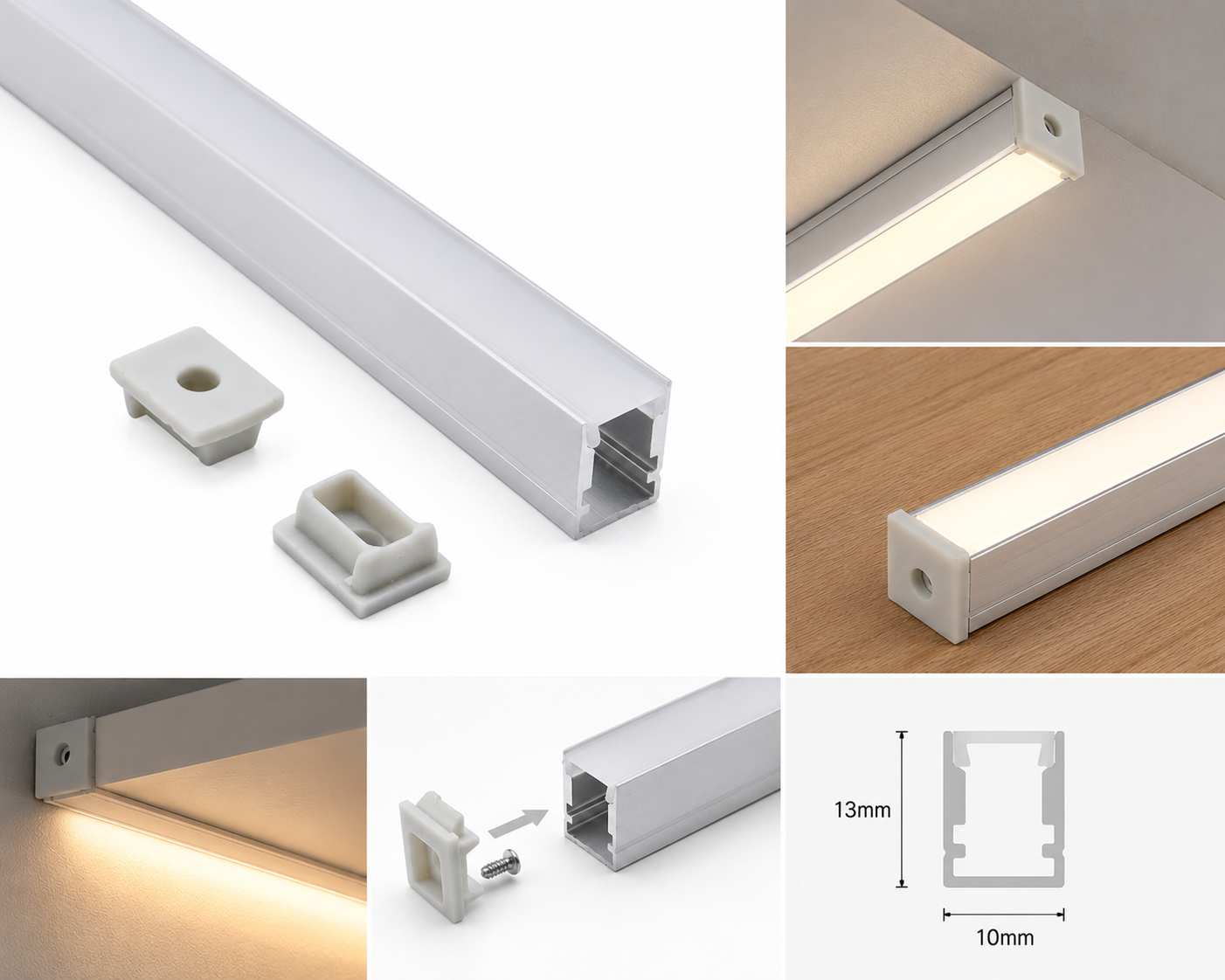

10×13mm Professional Recessed LED Light Groove – 6063-T5 Aluminum Recessed Extruded Profile, for Cabinet and Display Case Lighting. Suitable for 5mm SMD and COB Light Strips.

10x13mm Compact LED Aluminum Profile | Narrow Vertical Light Troughs and Strip Lighting Kits for Cabinets, Closets, and Display Shelves

The 10x13mm LED aluminum profile strikes the perfect balance in linear lighting: it's narrow enough to be cleverly concealed within cabinets and display cases, yet tall enough to precisely project light where needed, minimizing excessive lateral scattering. Measuring only 9.8mm wide x 12.8mm high, this compact vertical light trough is designed for Australian kitchens, pantry, glass-door display cases, bookshelves, and drawers, effectively solving the problems of wasted space or glare projected onto adjacent surfaces by standard horizontal light troughs.

Unlike wider, shallower light troughs with a wider light dispersion range, the higher cross-section of the 10x13mm light trough acts like a natural optical baffle, focusing light forward and downward onto items on shelves, countertops, and displays, while minimizing lateral light that can cause glare or whitening of nearby surfaces. The 8mm internal width (optimized for 5mm strips) allows for a perfect fit with the most commonly used narrow LED strips, enabling centered installation. The 6063-T5 anodized aluminum housing provides reliable passive heat dissipation, ensuring long-term stable operation in enclosed cabinet environments. Whether surface-mounted using the included clips or semi-recessed into wood panels, the MXNOVA 10x13mm delivers professional-grade linear lighting in compact spaces without compromising visual appeal.

Why do Australian cabinet manufacturers, joinery workers, and interior decorators choose the 10x13mm?

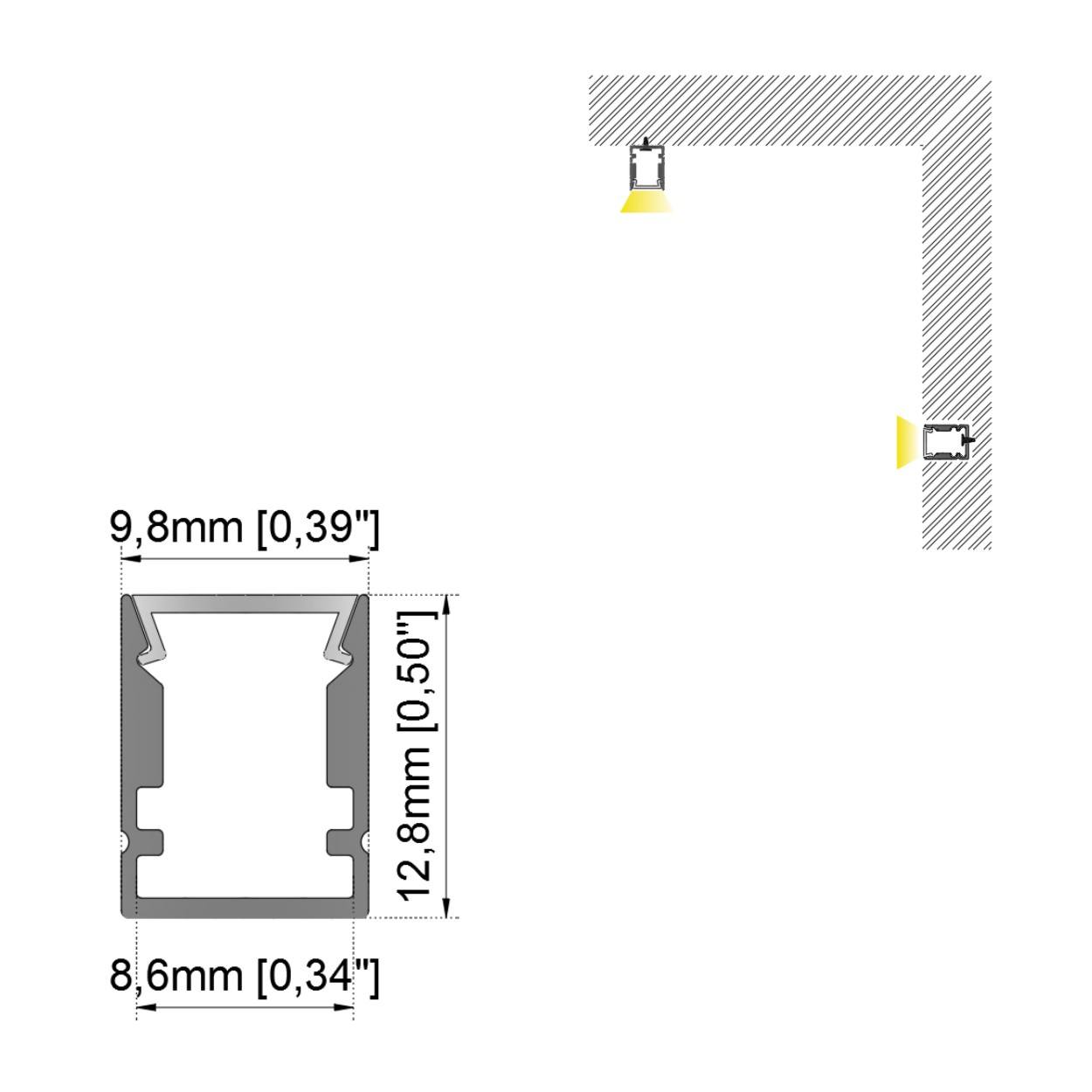

Compact vertical geometry for precise light control: Most LED profiles use a horizontal design—wide and shallow—which leads to light scattering and unwanted spillage, affecting cabinet sides, glass doors, and adjacent walls. The 10x13mm luminaire revolutionizes traditional lighting. Its cross-section, taller than wide (9.8mm wide × 12.8mm high), creates a built-in optical baffle that directs light forward and downward, minimizing lateral scattering. This is particularly important in the following scenarios:

Glass-door display cases: Light illuminates the displayed items without reflecting off the glass doors or whitening adjacent walls.

Open shelves and bookcases: The focused, downward beam highlights items on the shelves without casting glare onto seating or work areas below.

Cabinet and pantry interiors: Concentrated lighting reaches back corners and lower shelves without wasting luminous flux on side walls.

Drawer interiors: Forward-facing light illuminates items when drawers are open without spilling upwards into the user's eyes.

The result is: more usable light where needed, less wasted light where not needed, and significantly reduced glare in confined, highly reflective cabinet environments.

8mm Inner Width Optimized for 5mm LED Strips (Maximum Compatibility with 5mm Strips): The internal channel, precision extruded to an 8mm width, perfectly fits 5mm LED strips—the most common size for cabinet and display lighting in Australia due to its perfect balance of brightness, efficiency, and compact size. This channel is also compatible with 8mm strips for applications requiring higher output or COB strips, but 5mm remains the recommended size for optimal centering and light uniformity within this profile size range. Tight tolerances prevent strip shifting during installation and thermal cycling, ensuring consistent optical alignment throughout the product's lifespan.

Dual Installation Flexibility: Surface Mount or Shallow Recessed: Adapt to your project needs without changing the profile:

Surface Mount: Quick and secure installation on any flat surface using the included stainless steel clips and screws. Ideal for retrofit projects, rental properties, and installation environments with limited wiring. The clips are easy to remove for maintenance or strip replacement.

Shallow Recesses: Grooves are cut into the bottom of wooden shelves, cabinet panels, or joinery components to create 10mm x 13mm recesses, achieving a semi-embedded, integrated look. The compact dimensions require minimal material removal to maintain structural integrity while creating a clean, built-in aesthetic favored in high-end Australian kitchens and wardrobes.

Both installation methods maintain full compatibility with accessories and excellent heat dissipation. The choice of installation method depends entirely on aesthetics and practicality, without any compromise on functionality.

6063-T5 Anodized Aluminum Ensures Reliable Heat Dissipation in Enclosed Spaces: Environments such as cabinet interiors, closet cavities, and sealed display cases have limited ventilation and high heat dissipation challenges. Directly attaching LED strips to wood or MDF can lead to luminous attenuation and color shift due to insufficient heat dissipation. The 10x13mm light strip features a 6063-T5 extruded aluminum alloy housing, effectively dissipating heat from the LED chips and ensuring that medium-power (4.8W–9.6W/m) strips operate within safe temperatures, sufficient for most cabinet and display lighting applications. A silver anodized finish enhances surface luminous efficiency.

Product Specifications

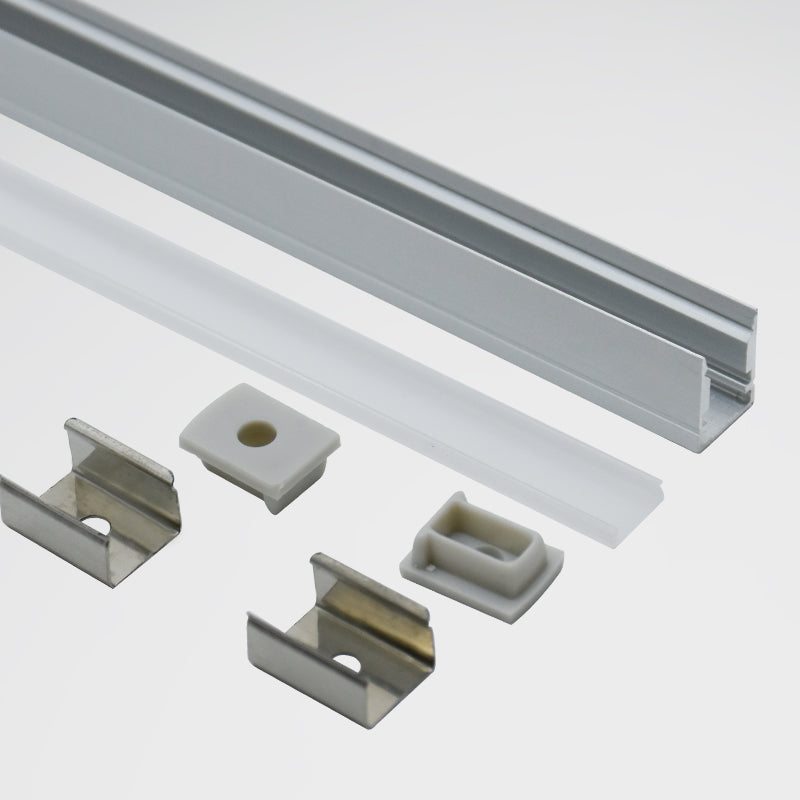

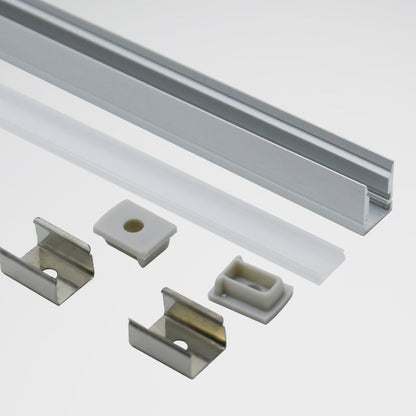

Package includes:

A specified quantity of 10×13mm aluminum profiles (1 meter or 2 meters long)

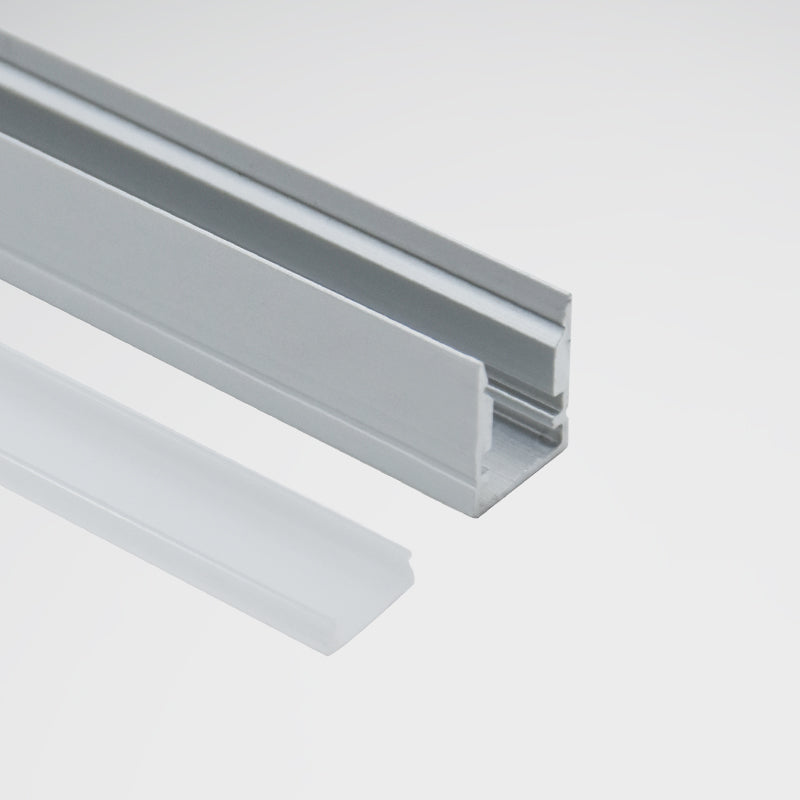

Matching white PC milky diffuser

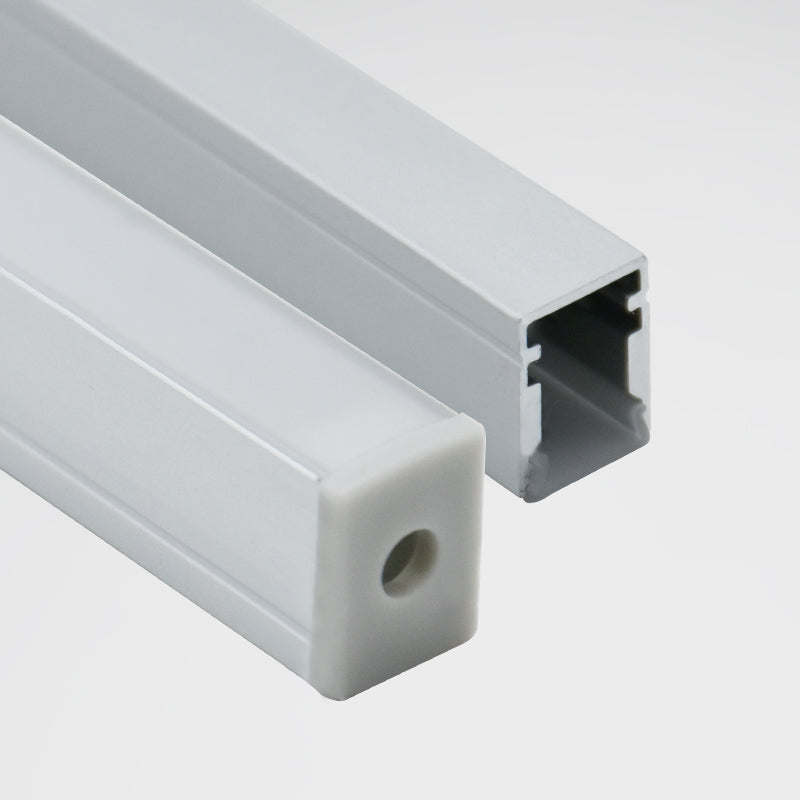

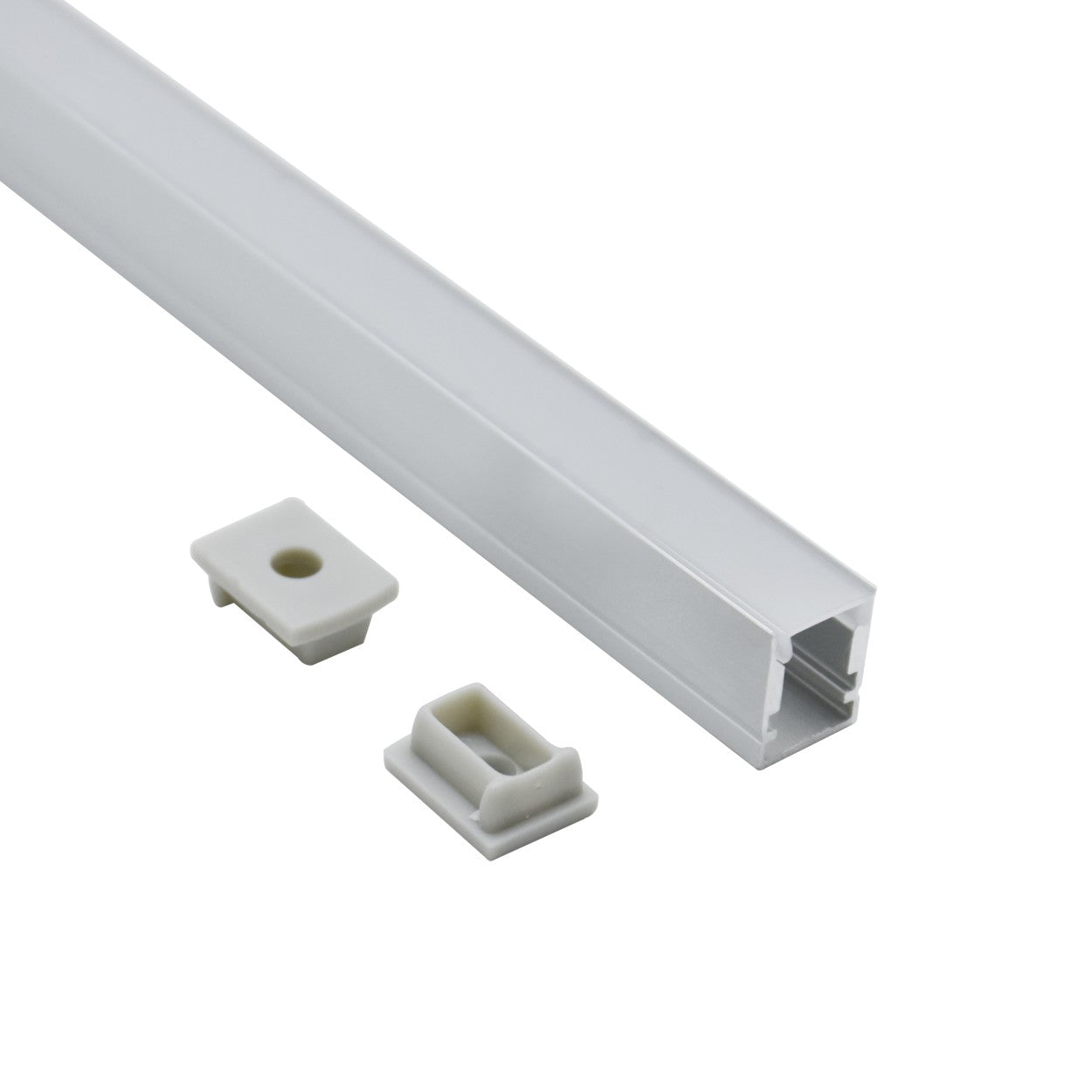

Protective end caps (one pair per profile)

Stainless steel mounting clips (2 for each 1-meter profile / 4 for each 2-meter profile)

Fixing screws for mounting the clips

Please note: LED light strips, power supply/driver, switch, dimmer controller, and corner connectors are sold separately. (Available separately in this store)

Australian Real-World Application Case

Kitchen Cabinet Interior Lighting: Illuminates the interior of base cabinets, wall cabinets, and appliance cabinets with focused, glare-free light, reaching back corners and lower shelves. The vertical profiles direct light downwards to stored items without spilling out through glass doors or open cabinet doors. Combined with 5mm COB light strips, it provides spotless lighting, making it easy to find ingredients and utensils. This product is essential for modern Australian kitchens with deep cabinets and limited natural light.

**Cabinet and Pantry Lighting:** Transform dimly lit pantrys and cabinets into bright, organized spaces. Install lights under each shelf to illuminate every item. A narrow 9.8mm width maximizes shelf depth, while a 12.8mm height ensures light penetrates to the back of deep shelves without creating shadows. This lighting is particularly useful for pantry spaces in Australian apartments and townhouses with limited space.

**Display Case and Glass Door Display Case Lighting:** Use precise directional lighting to highlight collectibles, ceramics, books, and retail goods, enhancing their texture and color while avoiding light reflections onto glass doors or whitening adjacent walls. Vertical baffles minimize glare for viewers while maximizing effective lighting for displayed items. Popular with Australian antique dealers, boutique retailers, and homeowners displaying carefully curated collections.

**Bookshelf and TV Cabinet Ambient Lighting:** Add soft, ambient light to living room bookshelves, TV cabinets, and media consoles. Downward-focused beams of light highlight book spines, decorative items, and audio equipment without creating glare in seating areas or on television screens. This creates a layered lighting effect, adding depth and warmth to Australian open-plan living spaces.

Drawer Interior Lighting: When a drawer is opened, forward-facing light illuminates items inside without shining upwards into the user's eyes. The compact 10x13 mm profile fits within standard Australian drawer cavities without interfering with slideways or reducing usable depth. This adds a premium feel to kitchen dish drawers, bedroom linen drawers, and home office filing cabinets.

Clothes Rod and Wardrobe Shelf Lighting: Installed above clothes rods or below wardrobe shelves, this focused, shadow-reducing light illuminates clothing and accessories. The vertical profile directs light downwards onto clothing without diffusing it laterally into adjacent areas, improving visibility and storage efficiency in walk-in closets and built-in wardrobes.

Glass Door Cabinet Edge Lighting: Vertically mounting the profile onto the inner frame of a glass door cabinet creates a soft, halo-like effect along the cabinet's edges. Its slender width is concealed behind the frame columns, while its 12.8mm height creates a soft vertical halo, outlining the cabinet doors and adding to the architectural aesthetic.

Bathroom vanity and medicine cabinet lighting: Moisture-proof, temperature-controlled lighting fixtures illuminate the interior of the mirrored medicine cabinet and vanity storage. Anodized aluminum withstands the humid bathroom environment, while milky white diffusers provide soft, shadow-free light for easy grooming and product selection.

Frequently Asked Questions

Q: Can I install this profile inside a glass cabinet?

A: Yes—this is one of the primary applications of the 10x13mm profile. Its narrow 9.8mm width allows it to be cleverly concealed behind a glass frame, while its 12.8mm vertical height directs light downwards to the display, preventing reflections onto the glass or affecting the color of adjacent walls. For best results, install the profile below the shelves or on the top inner frame rail, ensuring the beam directly illuminates the display area. Paired with a high color rendering index (CRI) 5mm COB LED strip, it delivers museum-quality lighting, significantly improving color accuracy and texture detail.

Q: How does its heat dissipation compare to larger profiles?

A: The 6063-T5 aluminum alloy body provides effective passive cooling for moderate-power LED strips (4.8W–9.6W per meter), sufficient for most cabinet, closet, and display lighting applications. Comparison:

Compared to direct adhesive mounting: Significantly superior performance – aluminum conducts heat effectively, extending LED lifespan by thousands of hours in enclosed cabinet environments.

Compared to larger profiles (e.g., 17x7mm, 20x10mm): Lower overall heat capacity, but sufficient for medium-power LED strips. Larger profiles provide greater heat dissipation for high-power LED strips (>14.4W/m) or continuous strips exceeding 3 meters.

If your application uses LED strips with power exceeding 14.4W/m, operates in high-temperature environments, or requires long-term continuous installation, we recommend upgrading to 17x7mm or 20x10mm profiles for greater heat dissipation space.

Q: Can the PC diffuser be replaced if scratched or damaged?

A: Yes. The white PC diffuser slides into the aluminum channel for easy removal and reinstallation without tools. Replacement diffusers are available for purchase separately – please contact our team and provide your profile model (MX1013B) and length to order spare parts. To prevent scratches during cleaning, use only a soft microfiber cloth; avoid using abrasive pads, solvents, or strong chemicals.

Q: Can I use an 8mm COB light strip on this profile?

A: No, the 8mm inner width accommodates both 5mm COB and SMD light strips. Using a 5mm light strip better fits the profile dimensions, resulting in better centering, easier installation, and more uniform lighting in narrower channels. An 8mm light strip is only suitable for applications requiring higher output and for which a slight reduction in centering accuracy is acceptable.

Q: Is this profile suitable for outdoor or humid environments?

A: No. The 10x13mm profile has an IP20 protection rating and is only suitable for dry indoor environments. For sheltered outdoor areas (such as covered decks or under eaves), we recommend using LED strips with an IP65+ protection rating and sealing the end caps with clear silicone. However, we recommend using our dedicated outdoor protection rating profiles for all outdoor applications. For bathroom areas classified as wet zones according to AS/NZS 3000 standards, consult a certified electrician for appropriate IP protection ratings and zone compliance.

Q: Can I paint the anodized silver finish to match my custom cabinetry?

A: Yes, with proper preparation. Lightly sand the anodized surface with 400-grit sandpaper, apply a metal-specific etching primer, and finally apply your choice of topcoat. Always test adhesion and color matching on a small scrap piece first. Note that painting may slightly reduce heat emissivity—after painting, ensure your LED strip power remains within the profile's recommended range (≤9.6W/m).

Q: What should the mounting clip spacing be?

A: Two mounting clips are provided for every 1 meter of profile, and four mounting clips are provided for every 2 meters of profile. For vertical installation, top installation, or applications subject to vibration (e.g., inside frequently opened cabinet doors), it is recommended to add an extra mounting clip per meter of profile for added security. Distribute the mounting clips evenly along the length of the profile to prevent the profile from sagging or tilting between the clips.
